The Genesis line of gas springs has been created to cover the industry’s wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations.
FEATURES:

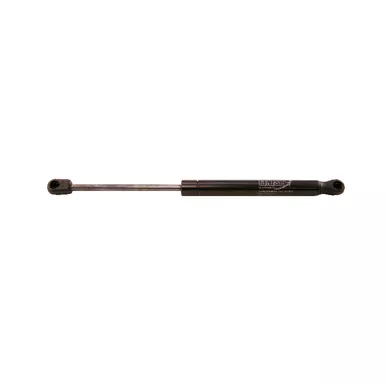

- Genesis Gas Spring
- .236″ Rod x .591″ Tube (8mm x 19mm)
- 5.5″ Stroke
- 10mm Composite Ends
- 29 lbs. Force
- 15″ Extended Length
SPECIFICATIONS:
| BRAND: | Genesis |
| CONNECTOR MATERIAL: | Composite |
| CONNECTOR SIZE: | 10mm |
| FORCE LBF: | 29 |
| STROKE: | 5.5 |
| EXTENDED LENGTH: | 15″ |
| WEIGHT: | .3 lbs. |
