Description

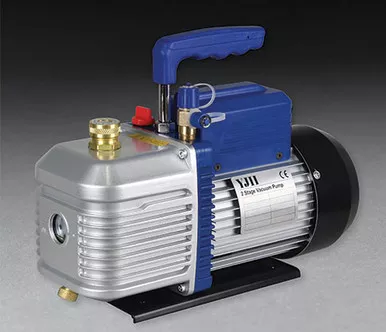

Yellow Jacket 93266 YJII Single Phase Vacuum Pump 5CFM
Compact and Lightweight
The YJII Vacuum Pump from YELLOW JACKET is a compact, lightweight, portable and affordable pump for servicing small systems.
Key Features and Benefits
- Deep ultimate vacuum
- Quick flow rate
- Wide range of applications
- Lightweight, durable aluminum housing
- Small and portable
- Reliable – runs steadily for long periods
- Thermal protector in motor to guarantee pump runs steadily and safely
- High torque motor design for easy start-up and efficient operation, even in the harshest conditions
- 1/4” and 3/8” SAE flare inlet connections allow for flexibility of hose fittings/sizes
- 3/4″ garden hose exhaust fitting with removable cap for venting
- Oversized 3/8″ oil drain for faster oil changes
- Vacuum pump oil included
- One year warranty
Specs
| Vacuum Pump Specs | |
|---|---|
| Free air displacement | 5 cfm |
| Ultimate vacuum | 25 microns |
| Number of stages | 2 Stage |
| Motor | 1/2 hp – 1725 rpm |
| Intake ports | 1/4″ and 3/8″ SAE |
| Voltage (single phase) | 120V (50-60Hz) |
| Oil capacity | 18 oz (532 ml) |
| Dimensions | 13″ x 5″ x 11″ (330 mm x 127 mm x 279 mm) |
| Weight | 25.3 lbs (11.5 kg) |
