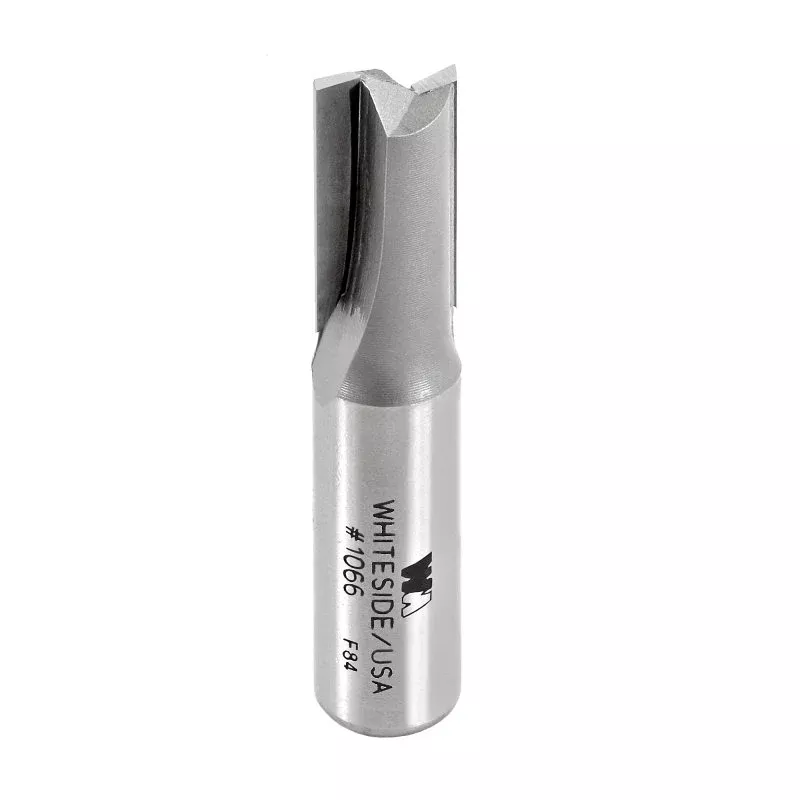

The versatile straight router bit is commonly used to rout grooves, dadoes and rabbets, rout mortises for hinges or tenons, cut grooves for inlays, flatten or shape panels, and cleanly cut round holes or holes of any desired shape. When used following a template, they also work well for making duplicates of simple or complex shapes.
All bits are carbide-tipped or solid carbide.
| Cutting Diameter | Cutting Length | OAL | Shank | HW | Whiteside |
|---|---|---|---|---|---|
| 1/16″ | 3/16″ | 1-1/2″ | 1/4″ | 109403 | SC062 ♦ ♦ |
| 1/8″ | 3/8″ | 2″ | 1/4″ | 109404 | SC09A ♦ |
| 3/16″ | 1/2″ | 2″ | 1/4″ | 109405 | SC11A ♦ |
| 7/32″ | 3/4″ | 2″ | 1/4″ | 109406 | SC13 ♦ |
| 15/64″ – 6 mm | 3/4″ | 2-3/4″ | 1/2″ | 109223 | SC235 ♦ |
| 1/4″ | 3/4″ | 2-1/4″ | 1/4″ | 102450 | 1013 |
| 1/4″ | 3/4″ | 2-3/8″ | 1/2″ | 108202 | 1058 |
| 1/4″ | 1″ | 2-1/4″ | 1/4″ | 108400 | 1014 |
| 5/16″ | 1″ | 2-3/4″ | 1/4″ | 102451 | 1020 ♦ |
| 5/16″ | 1″ | 2-5/8″ | 1/2″ | 108203 | 1060 |
| 5/16″ | 1″ | 2-3/4″ | 8 mm | 104528 | 1020×8 ♦ |
| 3/8″ | 1″ | 2-1/2″ | 1/4″ | 108402 | 1022 |
| 3/8″ | 1″ | 2-5/8″ | 1/2″ | 108204 | 1062 |
| 3/8″ | 1-1/4″ | 2-7/8″ | 1/2″ | 102260 | 1063 |
| 7/16″ | 1″ | 2-1/2″ | 1/4″ | 108403 | 1024 |
| 7/16″ | 1-1/4″ | 3-1/4″ | 1/2″ | 102261 | 1065L♦ |
| 31/64″ | 3/4″ | 2-1/4″ | 1/4″ | 108404 | 1024A ♦ |
| 31/64″ | 1″ | 2-5/8″ | 1/2″ | 102262 | 1065A ♦ |
| 1/2″ | 1″ | 2-1/2″ | 1/4″ | 108405 | 1026 |
| 1/2″ | 1″ | 2-5/8″ | 1/2″ | 102263 | 1066 |
| 1/2″ | 1-1/4″ | 2-7/8″ | 1/2″ | 108206 | 1067 ♦ |
| 1/2″ | 1-1/2″ | 3-1/8″ | 1/2″ | 108207 | 1069 |
| 1/2″ | 2″ | 4-1/8″ | 1/2″ | 108208 | 1072 |
| 1/2″ | 2-1/2″ | 4-3/8″ | 1/2″ | 102264 | 1073 |
| 9/16″ | 3/4″ | 2-1/4″ | 1/4″ | 108406 | 1027 |
| 9/16″ | 1-1/4″ | 3″ | 1/2″ | 108209 | 1075 |
| 19/32″ | 3/4″ | 2-1/4″ | 1/2″ | 108210 | 1075A ♦ |
| 5/8″ | 3/4″ | 2-1/8″ | 1/4″ | 108407 | 1028 |
| 5/8″ | 1-1/4″ | 3″ | 1/2″ | 102265 | 1077 |
| 11/16″ | 1-1/4″ | 2-1/2″ | 1/2″ | 108211 | 1083 |
| 23/32″ | 3/4″ | 2-1/8″ | 1/4″ | 108408 | 1029A ♦ |
| 23/32″ | 1″ | 2-1/2″ | 1/2″ | 102266 | 1083A ♦ |
| 3/4″ | 3/4″ | 2-1/8″ | 1/4″ | 108409 | 1030 |
| 3/4″ | 1-1/4″ | 3″ | 1/2″ | 108212 | 1085 |
| 3/4″ | 2″ | 3-5/8″ | 1/2″ | 102268 | 1087 |
| 7/8″ | 1-1/4″ | 3″ | 1/2″ | 108213 | 1091 |
| 1″ | 1-1/4″ | 3″ | 1/2″ | 108214 | 1093 |
| 1″ | 2″ | 3-3/4″ | 1/2″ | 102269 | 1095 |
| 1-1/2″ | 1-1/4″ | 3″ | 1/2″ | 108215 | 1099 <18 |
| 1-3/4″ | 1-1/4″ | 3″ | 1/2″ | 108216 | 1100 <18 |
|
♦ Solid Carbide. ♦ Single Flute. ♦ Undersized for plywood dado. <18 Warning! Max RPM – 18,000 OAL = Over All Length ♦ Leigh Dovetail system equivalent. |
