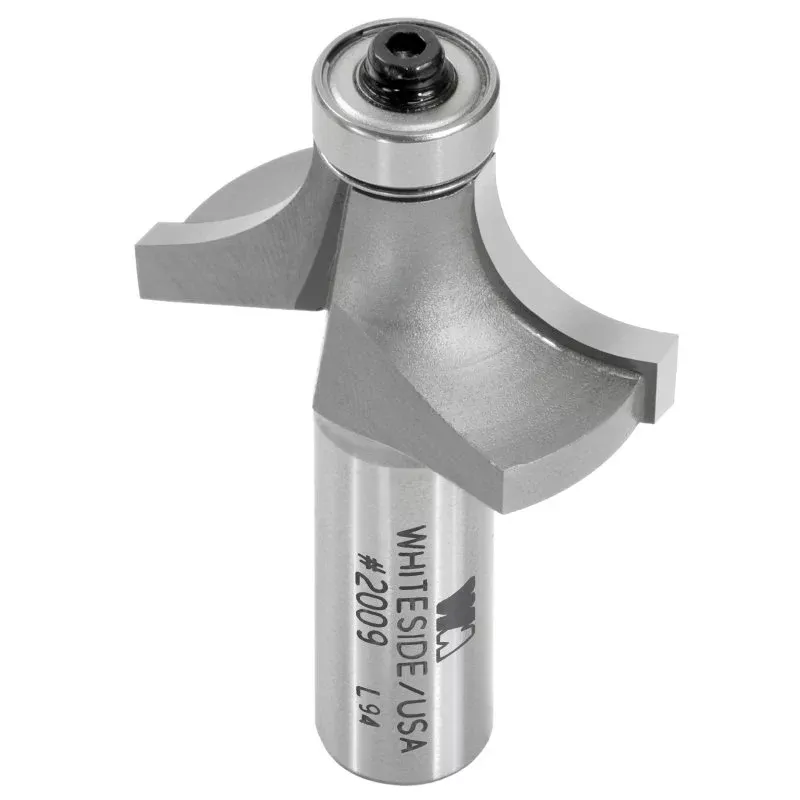

The Roundover Bit shapes the edge of a workpiece to the desired radius, providing a softer feel and appearance than that of an ordinary square edge. Typically the profile produced by a round over bit corresponds to a quarter of a round circle whose radius defines the size of the bit. By altering the depth of cut, a round over bit can also create a fillet at the top of the cut. A round over bit is typically guided by a ball bearing.
| Radius | Shank | Lg. Dia. |
Carbide Height |
OAL | HW | Whiteside |
|---|---|---|---|---|---|---|
| 1/16″ | 1/4″ | 5/8″ | 1/2″ | 2″ | 108438 | 2000A |
| 3/32″ | 1/4″ | 11/16″ | 1/2″ | 2-1/16″ | 108439 | 2000B |
| 1/8″ | 1/4″ | 3/4″ | 1/2″ | 2-1/16″ | 108440 | 2000C |
| 5/32″ | 1/4″ | 13/16″ | 1/2″ | 2-1/16″ | 108441 | 2000D |
| 3/16″ | 1/4″ | 7/8″ | 1/2″ | 2-1/16″ | 108437 | 2000 |
| 1/4″ | 1/4″ | 1″ | 1/2″ | 2-1/16″ | 108442 | 2001 |
| 1/4″ | 1/2″ | 1″ | 1/2″ | 2-7/16″ | 108241 | 2006 |
| 5/16″ | 1/4″ | 1-1/8″ | 1/2″ | 2-1/8″ | 108443 | 2002 |
| 5/16″ | 1/2″ | 1-1/8″ | 1/2″ | 2-7/16″ | 108242 | 2007 |
| 3/8″ | 1/4″ | 1-1/4″ | 5/8″ | 2-3/16″ | 108444 | 2003 |
| 3/8″ | 1/2″ | 1-1/4″ | 5/8″ | 2-7/16″ | 108243 | 2008 |
| 1/2″ | 1/4″ | 1-1/2″ | 3/4″ | 2-7/16″ | 108445 | 2004 |
| 1/2″ | 1/2″ | 1-1/2″ | 3/4″ | 2-5/8″ | 106277 | 2009 |
| 5/8″ | 1/2″ | 1-3/4″ | 1″ | 2-7/8″ | 108244 | 2009A <14 |
| 3/4″ | 1/2″ | 2″ | 1″ | 2-15/16″ | 104298 | 2010 ♦ <14 |
| 1″ | 1/2″ | 2-1/2″ | 1-5/16″ | 3-3/8″ | 108245 | 2012 ♦ <14 |
| 1-1/4″ | 1/2″ | 3-1/4″ | 1-3/4″ | 4-1/16″ | 105254 | 2014 ♦ ♦ <10 |
| 1-1/2″ | 1/2″ | 3-3/4″ | 1-7/8″ | 4-1/4″ | 108246 | 2016 ♦ ♦ <10 |
| ♦ USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND HELD ROUTER! | ||||||
| All bits up to 1″ radius use a 3/16″ ID x 1/2″ OD bearing and can be converted to a beading bit by changing to a 3/16″ ID by 3/8″ OD bearing. | ||||||
| ♦ All bits over 1″ radius use a 1/4″ ID x 3/4″ OD bearing and can be converted to a beading bit by changing to a 1/4″ ID by 5/8″ OD bearing. | ||||||
| ♦ This bit is recommended for making the seat to leg joint in the Charles Brock plans for building a sculptured rocker. | ||||||
| <14 Warning! Max RPM – 14,000 | ||||||
| <10 Warning! Max RPM – 10,000 | ||||||
| OAL = Over All Length |
