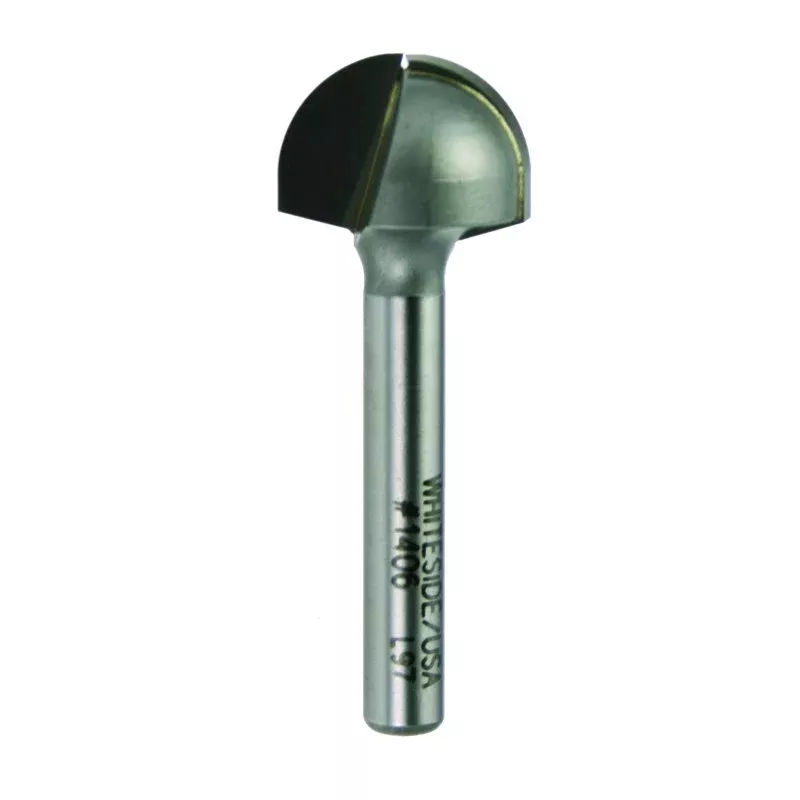

With a shape similar to a cove bit, the Round Nose Router Bit is designed to plunge into the middle of a workpiece and rout a groove or flute along its length.Also referred to as a core box bit.
| Cutting Diameter |
Nose Radius |
Cutting Length |
OAL | Shank | Bearing Guide |
HW | WM |
|---|---|---|---|---|---|---|---|
| 1/8″ | 1/16″ | 1/4″ | 2″ | 1/4″ | No | 109409 | SC39♦ |
| 1/4″ | 1/8″ | 1/2″ | 2″ | 1/4″ | No | 109410 | SC41♦ |
| 3/8″ | 3/16″ | 1/2″ | 2″ | 1/4″ | No | 108415 | 1403 |
| 1/2″ | 1/4″ | 5/8″ | 2-1/4″ | 1/4″ | No | 108416 | 1404 |
| 1/2″ | 1/4″ | 5/8″ | 2-1/4″ | 1/4″ | Yes | 108417 | 1404B♦ |
| 5/8″ | 5/16″ | 3/8″ | 2″ | 1/4″ | No | 108418 | 1405 |
| 5/8″ | 5/16″ | 3/8″ | 2″ | 1/4″ | Yes | 108419 | 1405B♦ |
| 5/8″ | 5/16″ | 1-1/4″ | 2-7/8″ | 1/2″ | No | 108219 | 1410 |
| 3/4″ | 3/8″ | 7/16″ | 2″ | 1/4″ | No | 108420 | 1406 |
| 3/4″ | 3/8″ | 7/16″ | 2″ | 1/4″ | Yes | 108421 | 1406B♦ |
| 3/4″ | 3/8″ | 1-1/4″ | 2-7/8″ | 1/2″ | No | 108220 | 1411 |
| 7/8″ | 7/16″ | 1-1/4″ | 2-7/8″ | 1/2″ | No | 108221 | 1412 |
| 1″ | 1/2″ | 1-1/4″ | 2-7/8″ | 1/2″ | No | 108222 | 1413 |
| 1-1/2″ | 3/4″ | 1-1/4″ | 3″ | 1/2″ | No | 108223 | 1415 |
| ♦Solid Carbide. | |||||||
| ♦Uses 1/4″ ID x 1/2″ OD Bearing. | |||||||
| ♦Uses 1/4″ ID x 5/8″ OD Bearing. | |||||||
| ♦Uses 1/4″ ID x 3/4″ OD Bearing. | |||||||
| OAL = Over All Length |
