Description

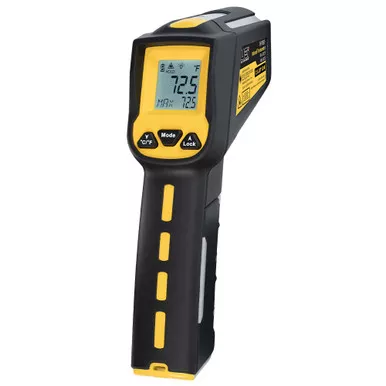

UEI INF165C 12:1 Infrared Thermometer with Circular Laser Targeting
Quickly Measure Surface Temperatures Without Contact
The UEi INF165C is a non-contact infrared thermometer featuring a unique circular laser targeting system and a 12:1 distance-to-spot ratio that clearly indicates the measurement area. Designed for HVAC diagnostics and general maintenance applications, it delivers fast, reliable surface temperature readings across an essential temperature range with selectable emissivity and maximum value capture. The INF165C is backed by a 1-Year limited manufacturer warranty.
Key Features & Benefits
- Circular laser targeting indicates the exact measurement area
- 12:1 distance-to-spot ratio for accurate long-range measurements
- Wide temperature range from -76° to 1022°F (-60° to 550°C)
- Ideal for checking registers, motors, breakers, panels, boilers, and hydronic systems
- Max value capture
- Selectable emissivity: 0.95 (default) or 0.70
- Fast 1-second response time
- Protective rubber grip for durability and comfort
- Auto power off
- 1-Year limited warranty
Specs
| Temperature Range | -76° to 1022°F (-60° to 550°C) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Accuracy (Tobj = 15-35°C, Tamb = 25°C) | ±2.7°F (1.5°C) |
| Accuracy (Tamb = 23 ± 3°C) | Tobj = 0 to 550°C: ±2% of reading or 2°C (4°F), whichever is greater Tobj = -60 to 0°C: ±(2°C + 0.05/deg C) |
| Emissivity | 0.95 or 0.70 (0.95 default) |
| Resolution | 0.1°C / 0.1°F from -76.0 to 999.9 (°C/°F), otherwise 1°C / 1°F |
| Response Time | 1 second |
| Distance-to-Spot Ratio | 12:1 |
| Dimensions | 6.43″ x 4.62″ x 1.92″ (163.4 x 117.5 x 48.8 mm) |
| Weight | 7.87 oz (223 g), including batteries |
