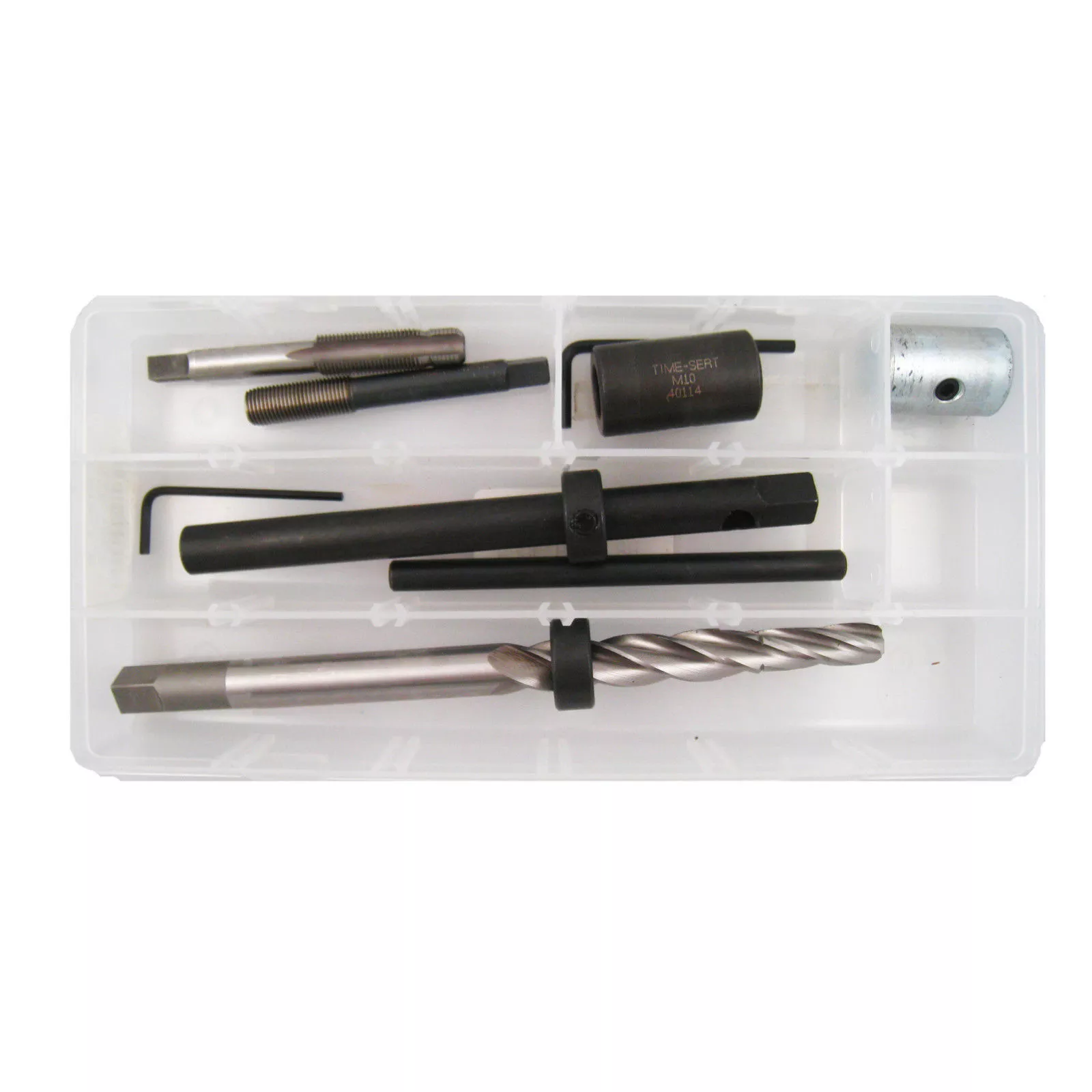

Time Sert 4010E M10x1.0 kit tooling works very well in holes 6″ deep or more.
This tooling will repair spark plugs that are fully threaded ora half threaded plug as in the NGK spark plugs p/n CR9EHIX-9which has a straight section between the threads and washer.
There are 2 movable collars included, the long black collar will repair full threadspark plugs which are flush to the surface and the silver collar will create aspecial countersink step required for the CR9EHIX-9 Honda style spark plugs.
Inserts not included order separately.If repairing the CR9EHIX-9 style plugs use the 9mm length insert p/n 40101.You will use the silver collar to create the countersink step as per the instruction.
M10x1.0 extended p/n 4010E INSTRUCTIONSThese instructions are specific to the 4010E only.
THIS KIT DOES NOT CONTAIN INSERTS.
PLEASE ORDER YOUR INSERTS FROM THE LINKS BELOW.
