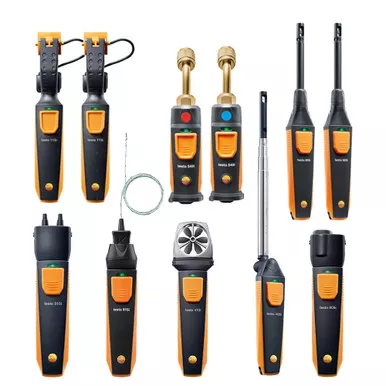

Testo Smart Probes HVAC/R Complete Kit
An all in one Smart Probe Solution
The 549i, 115i, 605i, 915i and 510i all work with MeasureQuick
The ultimate kit for air conditioning, refrigeration and heating contractors, enabling the measurement of temperature, humidity, flow and pressure. In conjunction with a smartphone or tablet, the refrigeration kit is ideally suited to servicing and troubleshooting of air conditioning, refrigeration and heating systems, as well as their installation. All the measuring instruments can be quickly and easily commissioned and attached directly at the pressure connection or the temperature measuring point. The Testo 549i, 115i, and 605i now work up to 350 feet away with new BlueTooth range.
The measuring values of all smart probes are transmitted via Bluetooth to the App installed on your smartphone/tablet enabling convenient and flexible readout. In the App, measurement parameters can be deleted, added or their order altered with just one click. It is also possible to change the displayed measurement parameters just as quickly. All measurement data are presented either as a chart or a table. Finally, the measurement data report can be e-mailed directly as a pdf or Excel file.
Features:
- Carry out tons of HVAC/R measurements with just one kit
- Testo 549i now includes 45° angled hose connections
- Testo 605i now includes 90° foldable probe and built in magnets for grille attachment
- Bluetooth range of up to 350 feet (549i, 115i, and 605i)
- Measurement data is transmitted to the powerful testo Smart Probes App in your smart device
- Individual Smart Probes can be combined with one another for a variety of applications
- Tough, accurate, and easy-to-use
- HVAC softcase holds the complete set of smart probes
- Operates with iOS or Android smart devices such as smart phones, tablets, etc.
Specs
| Testo 115i | Testo 405i | Testo 410i | Testo 510i | |
|---|---|---|---|---|
| Sensor type | NTC | Hot wire / NTC | Vane / NTC | Pressure |
| Measuring range | -58 to 302 °F | 0 to 6000 fpm -4 to 140 °F |
0 to 6000 fpm -4 to 140 °F |
-60 to 60 inWC |
| Accuracy ±1 digit |
±2.3 °F (-4 to 185 °F) | ±(20 fpm +5% of m.v.) (0 to 394 fpm) ±(59 fpm +5% of m.v.) (394 to 3,000 fpm) ±0.9 °F |
±(40 fpm +2% of m.v.) (78 to 6,000 fpm) ±0.9 °F |
±0.02 inWC (0 to 0.4 inWC) ±(0.01 inWC +1.5% of m.v.) (0.4 to 60 inWC) |
| Resolution | 0.1 °F | 2 fpm / 0.1 °F | 20 fpm / 0.1 °F | 0.004 inWC |
| Bluetooth Range | up to 350 ft. | up to 60 ft. | up to 60 ft. | up to 60 ft. |
| Dimensions | 7.2 x 3.5 x 1.2 in. | 7.9 x 1.2 x 1.6 in (Probe telescopes to 16″) | 6.1 x 1.7 x 0.8 in | 5.8 x 1.4 x 0.9 in |
| Testo 549i | Testo 605i | Testo 805i | Testo 915i | |
| Sensor type | Pressure | Humidity capacitive / NTC | Infrared | Type K TC |
| Measuring range | -14 to 870 psi | 0 to 100 %RH -4 to 140 °F |
-22 to 482 °F | -58 to 752 °F |
| Accuracy ±1 digit |
0.5% of final value | ±3.0 %RH (10 to 35 %RH) ±2.0 %RH (35 to 65 %RH) ±3.0 %RH (65 to90 %RH) ±5 %RH ( 90 %RH) ±1.4 °F (-4 to 32 °F) ±0.9 °F (32 to 140 °F) |
±2.7 °F or ±1.5 % of m.v. (32 to 482 °F) ±3.6 °F (-4to 32 °F) ±4.5 °F (-22 to -4 °F) |
±1.8 °F (-22° to 176 °F) ±(1.3 °F + 1 % of mv) (-58° to-30 °F) ±(0.4 °F + 1 % of mv) (176° to 400 °F) |
| Resolution | 0.1 psi | 0.1 %RH / 0.1 °F | 0.1 °F | 0.1 °F |
| Bluetooth Range | up to 350 ft. | up to 350 ft. | up to 60 ft. | up to 60 ft. |
| Dimensions | 5.9 x 1.3 x 1.2 in | 8.6 x 1.2 x 1.0 in | 5.5 x 1.4 x 1.0 in | 8.7 x 1.2 x 0.9 in |
