Description

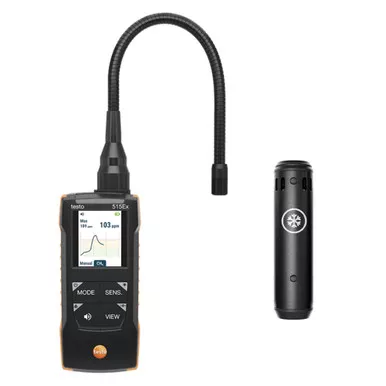

Testo 515 Ex Combination Leak Detector for Combustible Gases and Refrigerants, 1 g/a Sensitivity, Intrinsically Safe
Intrinsically Safe Refrigerant Leak Detection for HVAC/R Systems
The Testo 515 Ex is an intrinsically safe refrigerant leak detector designed for HVAC/R technicians working around commercial, industrial, and specialty refrigeration systems. Its refrigerant sensor delivers exceptional sensitivity and fast response times, helping locate leaks quickly while minimizing system downtime.
Certified for use in potentially explosive environments, the Testo 515 Ex features sensitivity down to 1 g/a, audio and vibration alarms, and advanced display options including numeric, bar graph, and trend curve views. A rechargeable lithium-ion battery, flexible probe, and rugged design make it a versatile solution for technicians working across multiple applications.
Key Features and Benefits
- Detects HCFC, HFC, HFO, HCFO, R290, and blended refrigerants
- Includes refrigerant sensor only
- Intrinsically safe design for hazardous environments
- Response and recovery time under 2 seconds
- Ultra sensitive down to 1 g/a
- Rechargeable lithium-ion battery
- Flexible 11-inch probe for difficult access points
- Audio, visual, and vibration alarms
- Color display with numeric, bar graph, and trend curve modes
- UL/CSA 60079-0 and 60079-11 certified
Specs
| Testo 515 Leak Detector Specs | |
|---|---|
| Detectable Refrigerants | HCFC, HFC, HFO, HCFO, R290, Blends |
| Sensitivity | 1 g/a (High+), 3 g/a (High), 14 g/a (Low) |
| Response Time | <2 Seconds |
| Resolution | 1 ppm 0.1 Vol.% (> 999 ppm) |
| Probe Length | 11.61 in. |
| Display Modes | Numeric, Bar Graph, Trend Curve |
| Sensor Life | 5 Years Under Normal Usage |
| Sensor Replaceable | Yes |
| Battery Type | 3400 mAh rechargeable Lithium-ion battery |
| Battery Life | Up to 8 Hours |
| Operating Temperature | 14°F to 122°F |
| Weight | 10.26 oz. |
| Dimensions | 5.20 x 2.36 x 1.46 in |
