Description

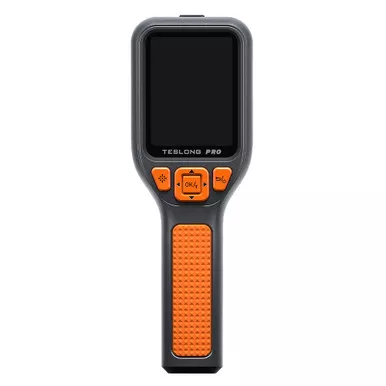

Teslong M1 PRO Compact Thermal Imaging Camera with 120 x 90 IR Sensor
Fast thermal diagnostics in a compact, everyday carry design
The Teslong M1 PRO Thermal Imaging Camera makes it easy to identify temperature-related issues in homes, vehicles, electrical systems, and mechanical equipment. Using advanced infrared imaging technology, the M1 PRO converts heat signatures into detailed thermal images, allowing users to quickly locate water leaks, insulation gaps, overheating components, and other hidden problems without making physical contact.
Designed for portability and ease of use, the M1 PRO features a built-in Class II laser rangefinder for measuring target distances and a temperature measurement range of -4°F to 752°F (-20°C to 400°C). Photos and videos can be captured directly from the device and stored in the onboard 8 GB memory, making documentation and reporting simple. Whether you’re performing routine inspections, troubleshooting equipment, or evaluating building performance, the M1 PRO delivers dependable thermal imaging in a compact, user-friendly package.
Key Features & Benefits
- Featuring a 120×90 IR Sensor with a 25 Hz Refresh Rate
- Temperature Measurement Range of -4°F to 752°F (-20°C to 400°C)
- 2600 mAh Rechargeable Lithium Battery with APO (Auto Power Off)
- 3.2-inch Screen with 240×320 Resolution
- Ideal for Building Inspectors & Equipment Maintenance
- Bright, Integrated Work Light with Dual LEDs
- 8 GB Built-in Memory
- Durable & Versatile Design
Specs
| M1 PRO Thermal Imager Specs | |
|---|---|
| Infrared Sensor Resolution | 120×90 |
| Field of View (FOV) | 38° x 50° |
| Pixel Size | 17 µm |
| Spectral Range | 8 ~ 14 µm |
| Thermal Sensitivity (NETD) | <60 mK |
| Image Frequency | 25 Hz |
| Temperature Measurement Range | -4°F to 752°F (-20°C to 400°C) |
| Temperature Measurement Accuracy | ±2°C or ±2% of Reading |
| Operating Temperature Range | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Integrated Work Light | Dual 2-Watt Cree LEDs |
| Laser Class | Class II |
| Temperature Display Modes | Center Point Temperature, Maximum Temperature Tracking (Hot), Minimum Temperature Tracking (Cold) |
| Color Palettes | Iron, White Hot, Black Hot, Rainbow, Hottest, High Contrast, Glimmer, Lava |
| Screen Type | 3.2-inch TFT LCD |
| Screen Resolution | 240 x 320 |
| Battery | 2600 mAh Rechargeable Lithium Battery with APO (Auto Power Off) |
| Storage Capacity | 8 GB |
| USB Port | USB Type-C with Protective Cover Against Dirt, Dust, and Water |
| Ingress Protection Rating | IP54 |
