Description

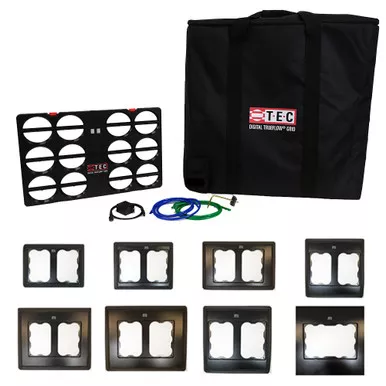

TEC Minneapolis Digital TrueFlow® Solution Full Kit with Grid and 8 Adapters (14×20 – 25×25, No Manometer)
Comes with 8 common adapter sizes –
14×20, 16×20, 16×25, 20×20, 20×24, 20×25, 24×24, and 25×25 universal cut-to-fit
Don’t own a DG-8 or DG-1000? Getthe full kit here.
The all new Digital TrueFlow® Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow® Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process. If the filter location is directly adjacent to the air handler, the Digital TrueFlow® Meter will measure the total air handler flow. If the filter is located remotely at a central return, the Digital TrueFlow® Meter will measure airflow through the central return. The Digital TrueFlow® Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup. Can be used in a wide range of return plenums and air handler fan configurations. Proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
The new Digital TrueFlow® features a built-in pressure gauge to allow wireless readings without the need to physically attach any tubing to the unit itself. Use your Android or iOS device to wirelessly control the Digital TrueFlow® and a TEC digital gauge (model DG-8 or DG-1000) with the TrueFlow HVAC app and create detailed system reports. With the Digital TrueFlow® Solution, it has never been easier to get it right!
Key Features & Benefits
- Includes 8 common filter adapter sizes: 14×20, 16×20, 16×25, 20×20, 20×24, 20×25, 24×24, and 25×25 universalcut-to-fit
- Follow step-by-step process with free TrueFlow App to measure system air flow and pressures with confidence
- Provides 3 primary workflows: Flow only, Flow grading per ANSI/ACCA/RESNET-310, and a comprehensive flow andpressure analysis
- Collects all data from Digital TrueFlow® grid and DG-8 via Bluetooth (DG-1000 can also be used)
- Creates a Customer-friendly report which summarizes measurements ad results
- Pressure & flow analysis report provides a diagnosis of system, and if flow is outside target range, willsummarize likely causes with suggested actions to be taken.
