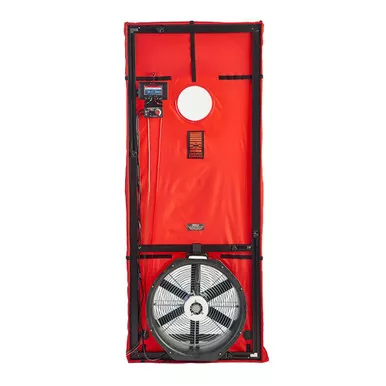

TEC Build Your Own BPI Weatherization Kit by TruTech Tools
Choose options and build your own BPI kit with TEC Blower Door
The TEC Build Your Own BPI Kit from TruTech Tools is designed specifically for professionals in the BPI Weatherization community who need flexibility, reliability, and precision on the job. This customizable kit lets you hand-pick the tools you trust — including the Minneapolis Blower Door, Duct Blaster®, and important accessories such as a combustion analyzer and thermal imager — to match your specific testing and diagnostic needs.
Whether you’re conducting blower door tests, duct leakage testing, or whole-house energy assessments, this kit gives you control to configure the right equipment while ensuring full BPI compliance and field-ready performance.
Perfect for:
- BPI Building Analysts
- Energy Auditors
- Weatherization professionals
- Contractors working on energy efficiency programs
Why choose this kit?
- Built around TEC’s proven and trusted equipment
- Easily configure for your specific certification or project requirements
- Backed by TruTech Tools’ industry-leading support and expertise
Streamline your field setup with a kit built your way — without paying for gear you don’t need. Create a BPI kit that works as hard as you do.
Specs
| DG-1000 Specs | |
|---|---|
| No. of Independent Pressure Channels | Two |
| Pressure Range | -2,500 to +2,500 Pascals (-10 to +10 inches of water) |
| Display Resolution | 0.1 Pa for readings 0 – 999.9 Pa 1 Pa for readings 1000 Pa and larger |
| Accuracy at Typical Use Conditions*/** | 0.9% of pressure reading or 0.12 Pa, whichever is greater |
| Units of Measure | Channel A – Pascals (Future addition – inches of water) Channel B – Pascals, CFM, CFM@75,CFM@50, CFM@25, ACH50, CFM@25/ft², CFM@25/100ft², CFM@50/ft², CFM@50/100ft², CFM@75/ft²,CFM@75/100ft² (Future additions – inches of water and equivalent metric units) |
| Auto-zero | On start up and then once every 10 seconds |
| Time Averaging | 1, 5, 10 seconds and long-term (continuous update) |
| Operating Temperature Range*** | 42 degrees F to 115 degrees F (5.5 degrees C to 46 degrees C) |
| Storage Temperature Range | -4 degrees F to 140 degrees F (-20 degrees C to 60 degrees C) |
| Display | 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen |
| Display Backlight | User adjustable (default 40%) |
| Power | Two 18650 Lithium Ion batteries with AC charger/power adapter included |
| Battery Life | Over 15 hours of continuous use with default settings 13 hours of continuous use withdefault settings and wifi active |
| Auto-Off | Adjustable from 10 minutes to 2 hours |
| Dimensions | 7.0 x 4.2 x 1.4 inches |
| Weight | 15.7 oz |
| 5000 Series Fan Specs | |
| Maximum Flow | 6,300 CFM at free air (2,973 l/s, 10,700 m3/h) 5,350 CFM at 50 Pa (2,524 l/s, 9,090 m3/h) 4,900 CFM at 75 Pa (2,360 l/s, 8.495 m3/h) |
| Minimum Flow | 300 CFM with Ring B (141 l/s, 510 m3/h) 85 CFM with Ring C (40 l/s, 144m3/h) 30 CFMwith Ring D (14 l/s, 51 m3/h) 11 CFM with Ring E (5 l/s, 18 m3/h) |
| Dimensions | 20 in. (50 cm) inlet diameter, 10.25 in (26 cm) length |
| Weight | 33 lbs. (15 kg) with Flow Rings A & B |
| Flow Accuracy | +/- 3% with DG-700 or DG-1000, Rings D & E +/- 4% or 1 CFM |
| Calibration | Meets ASTM Standard E779, E1554, CGSB-149.10-M86, EN 13829, ATTMA Technical Standard 1, NFPA2001, RESNET and USACE |
| Power | 3/4 hp motor (110V) |
| Frame Specs | |
| Frame Material | Extruded aluminum |
| Width | 28 in. to 40 in. (71 cm to 101 cm) |
| Height | 52 in. to 96 in. (132 cm to 244 cm) |
| Seal | EPDM flexible gasket |
| Panel Material | Nylon with built-in vinyl window |
