Features:

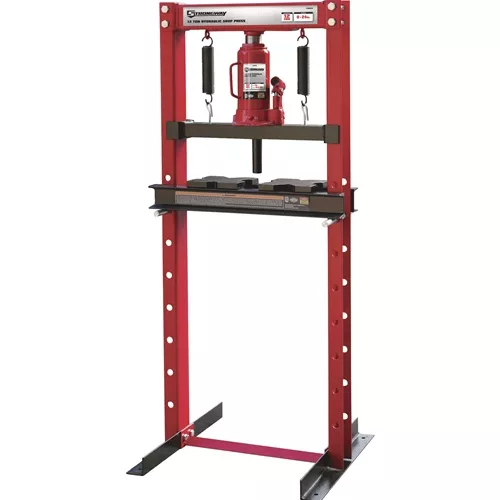

- Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
- Dimensions: 20.875″ L x 19.68″ W x 48.43″ H
- Ship weight of 95 lbs
- 12-ton maximum pressure
- 6.875″ stroke length
- Bed opening of 3.12″
- Maximum working distance of 24″
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt-resistant for easy cleanup
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston-ram is treated and polished to resist skiving
- Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
- Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°F and 105°F
- Extra-long handle included for easy pumping force
- Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
- Meets ASME ASP 2010 standards
- Includes (1) shop press, (1) hardware kit, and (2) solid steel press plates
Manufacturer’s Limited 1-Year Warranty
