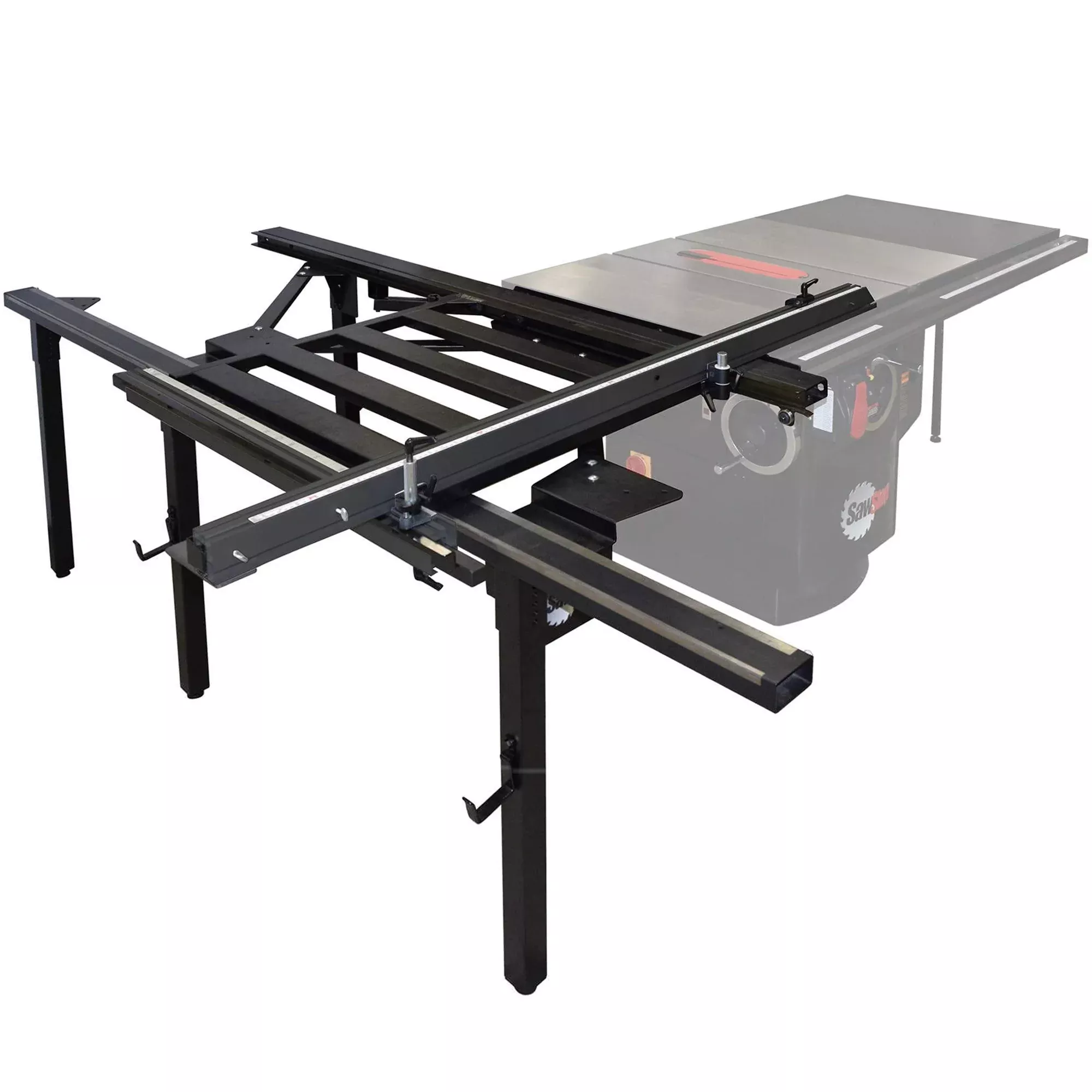

Designed to fill the needs of any industrial workshop, the Large Sliding Table makes it easy to achieve complete repeatable accuracy. It is excellent for cutting large stock and sheet goods and has a maximum crosscut of 70″. The rigid steel frame, 14 sealed steel bearings and aluminum fence ensure smooth, reliable and repeatable cuts and maximum adjustability.
- Works with PCS & ICS, but not Contractor’s Saw
- Sliding Table Dimensions 30 inches x 30-1/2 inches
- Maximum Table Travel 71-1/2 inches
- Maximum Crosscutting Length 118 inches (On PCS without Extension Wing)
- Maximum Rip Capacity (Front Mounting) 49 inches
- Maximum Rip Capacity (Rear Mounting) 70 inches
- Detents at 0, 15, 22.5, 30 and 45 degrees
- Net Weight 173 lb
- Weight Capacity Fully Extended 350 lb
- Not compatible with any mobile base
- With wing installed, CBF rails with date code before 1622 must be cut
- Without wing installed, ALL rails must be cut
