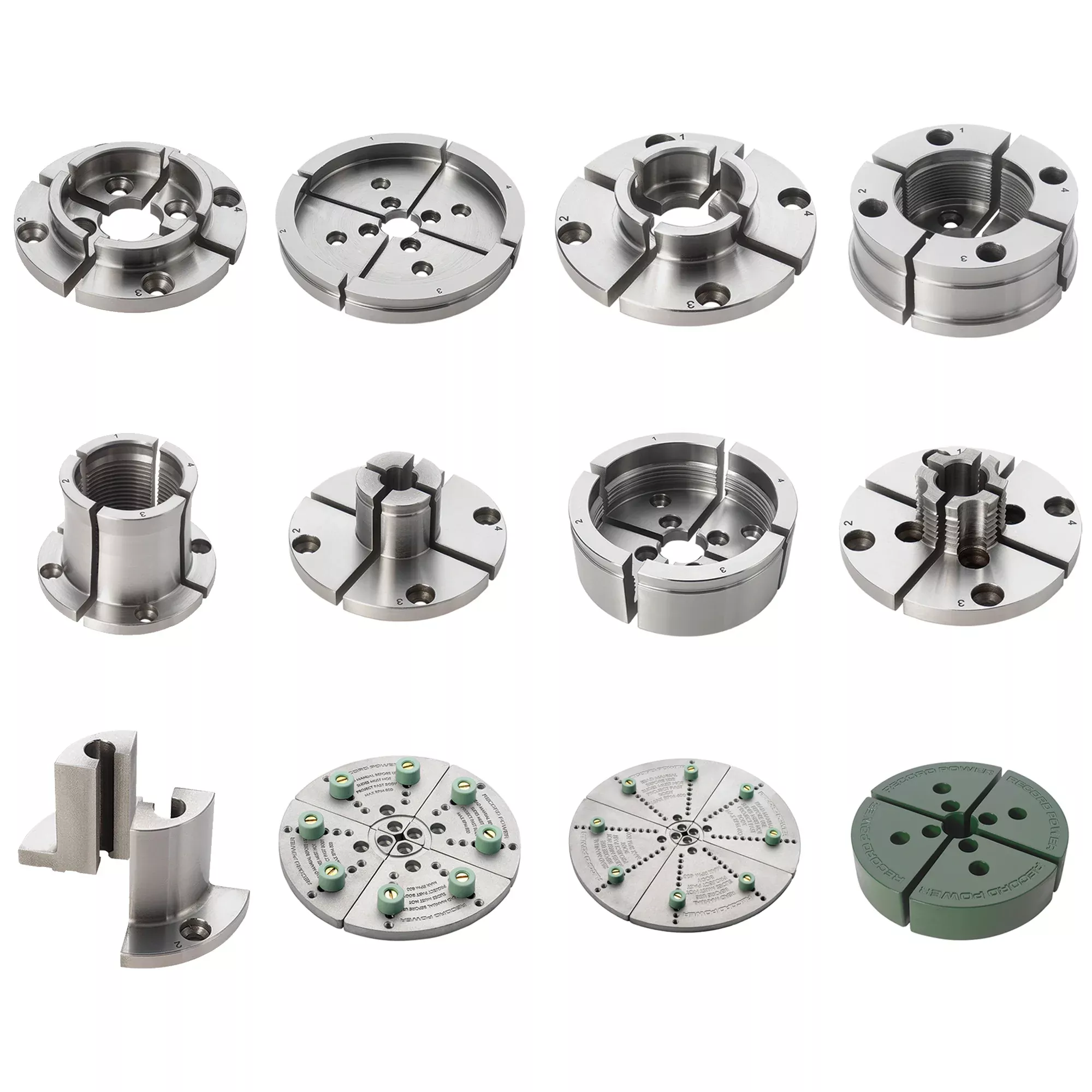

Record Power offers fourteen jaws designed to grip just about anything you could fit on their SC3 & SC4. The Record Power jaws offer the ability to rough turn a bowl, re-chuck a bowl to finish turn the outside, turn a box, drill a pen blank and many other operations.
| Type | Internal Grip | External Grip Round |
External Grip Square |
RP |
|---|---|---|---|---|
| 35 mm – 1 -3/8″ |
1 -1/2″ – 2 -5/16″ (38-58 mm) |
1 -1/8″ – 1 -7/8″ (28-47 m) |
5/8″ – 1 -7/16″ (16-37 mm) |
62321 |
| 50 mm – 2″ ♦ |
2 -1/16″ – 2 -13/16″ (52-72 mm) |
1 -5/8″ – 2 -3/8″ (42-61 mm) |
1 -3/16″ – 2″ (30-51 mm) |
62313 |
| 75 mm Heavy Bowl – 3″ |
3 -3/16″ – 4″ (81-102 mm) |
1 -13/16″ – 2 -9/16″ (46-65 mm) |
1 -5/16″ – 2 -1/8″ (33-54 mm) |
62322 |
| 100 mm Dovetail – 4″ Deep Gripper |
3 -11/16″ – 4 -1/2″ (94-114 mm) |
3″ – 3 -3/4″ (76-95 mm) |
2 -1/8″ – 2 -15/16″ (54-74 mm) |
62329 |
| 130 mm Dovetail – 5 -1/8″ |
4 -15/16″ – 5 -3/4″ (125-145 mm) |
4 -1/8″ – 4 -13/16″ (104-123 mm) |
2 -15/16″ – 3 -11/16″ (74-94 mm) |
62317 |
| Long Nose |
2 -1/8″ – 2 -15/16″ (54-74 mm) |
1 -1/2″ – 2 -5/16″ (38-58 mm) |
1 -1/16″ – 1 -7/8″ (27.5-48 mm) |
62323 |
| Pin |
1″ – 1 -3/4″ (25-45 mm) |
3/8″ – 1 -1/8″ (9-28 mm) |
1/4″ – 1 -1/16″ (7-27 mm) |
62327 |
| Mini Spigot |
1″ – 1 -13/16″ (26-46 mm) |
1/2″ – 1 -5/16″ (13-33 mm) |
7/16″ – 1 -1/4″ (11-31 mm) |
62336 |
| Pen |
1″ – 1 -13/16″ (35-64 mm) |
7/16″ – 13/16″ (11-20 mm) |
3/8″ – 1″ (10-26 mm) |
62337 |
| Mini Remounting |
3 -3/4″ – 8 -7/16″ (95-215 mm) |
2 -5/16″ – 6 -11/16″ (59-170 mm) |
2 -1/6″ – 6 -1/16″ (53-154 mm) |
62356 |
| Mega Remounting |
2 -1/6″ – 12 -7/16″ (53-316 mm) |
2 -3/16″ – 10 -11/16″ (55-272 mm) |
2″ – 9 -13/16″ (51-250 mm) |
62377 |
| Soft Plastic | Custom Fit Outside Diameter 5 -1/2″ (140 mm) |
62378 | ||
|
Metric measurements are binding. Inch measurements are approximate. ♦ 50 mm Jaws are standard equipment on the SC3 & SC4 chucks. |
