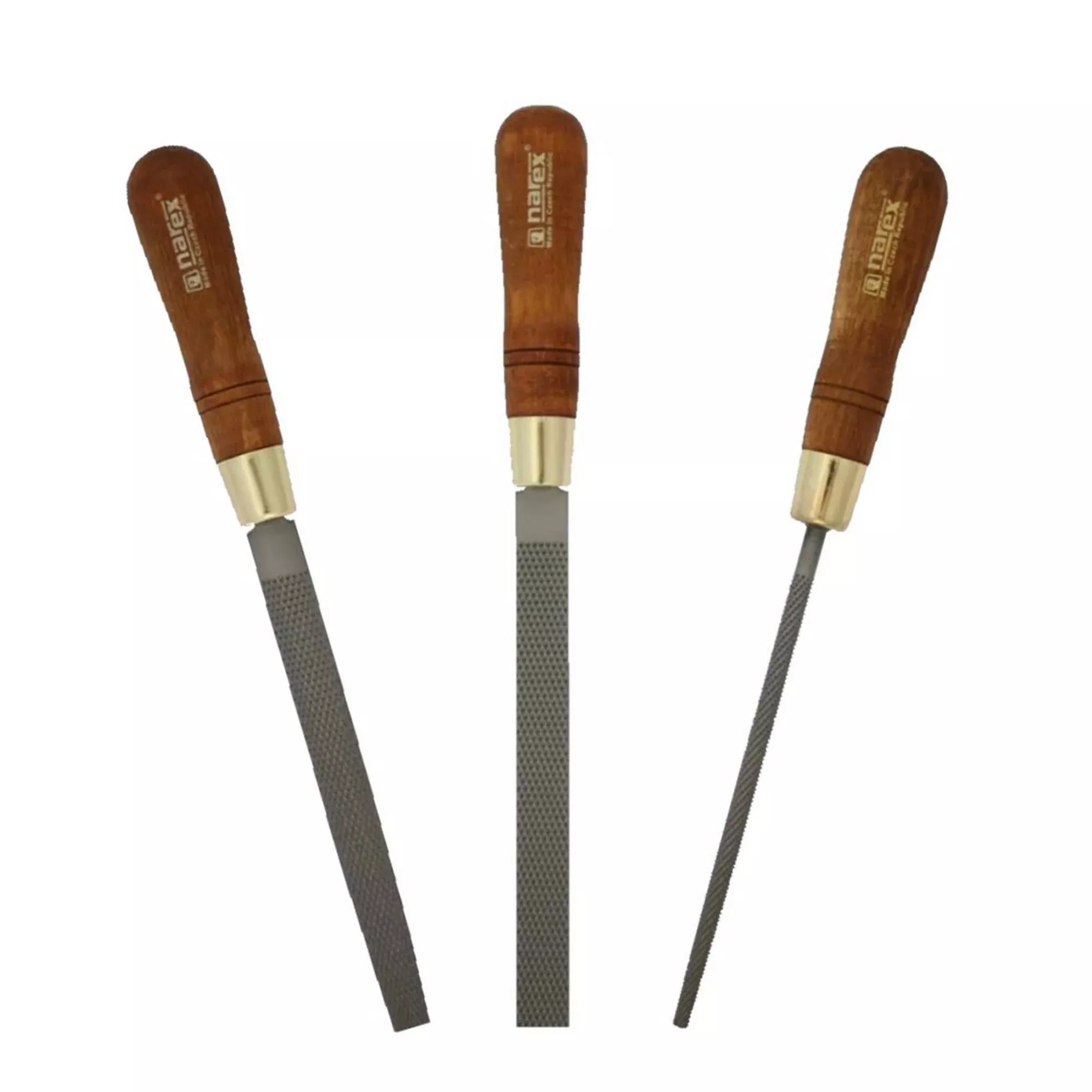

The blades of Narex rasps are manufactured from tool steel. After they are CNC stitched, they are hardened to Rc 45. The handles are Hornbeam.
CNC stitching ensures that the pattern is uniform and each tooth is raised to the same height. The result is a wood rasp that exhibits a steady rate of removal and produces an even finish on the workpiece.
Half-round and flat styles have teeth on both sides. Edges are not safe.
| Shape | Width | Thickness | Cutting Length |
Overall Length |
Grit (Teeth per square centimeter) |
|---|---|---|---|---|---|
| Flat | 16 mm (5/8″) |
4 mm (3/16″) |
150 mm (5-7/8″) |
295 mm (11-5/8″) |
20 teeth per cm² |
| 20 mm (13/16″) |
5 mm (3/16″) |
200 mm (7-7/8″) |
345 mm (13-9/16″) |
16 teeth per cm² – standard 22 teeth per cm² – fine cut |
|
| 25 mm (1″) |
6 mm (1/4″) |
250 mm (9-13/16″) |
395 mm (15-9/16″) |
12 teeth per cm² | |
| 30 mm (1-3/16″) |
7 mm (9/32″) |
300 mm (11-13/16″) |
445 mm (17-1/2″) |
10 teeth per cm² | |
| Half-Round | 16 mm (5/8″) |
5 mm (3/16″) |
150 mm (5-7/8″) |
295 mm (11-5/8″) |
20 teeth per cm² |
| 20 mm (13/16″) |
6.5 mm (1/4″) |
200 mm (7-7/8″) |
345 mm (13-9/16″) |
16 teeth per cm² – standard 22 teeth per cm² – fine cut |
|
| 25 mm (1″) |
8 mm (5/16″) |
250 mm (9-13/16″) |
395 mm (15-9/16″) |
12 teeth per cm² | |
| 28 mm (1-1/8″) |
9 mm (3/8″) |
300 mm (11-13/16″) |
445 mm (17-1/2″) |
10 teeth per cm² | |
| Round | 6 mm (1/4″) |
6 mm (1/4″) |
100 mm (3-15/16″) |
295 mm (11-5/8″) |
20 teeth per cm² |
| 8 mm (5/16″) |
8 mm (5/16″) |
200 mm (7-7/8″) |
345 mm (13-9/16″) |
16 teeth per cm² – standard 22 teeth per cm² – fine cut |
|
| 10 mm (3/8″) |
10 mm (3/8″) |
250 mm (9-13/16″) |
395 mm (15-9/16″) |
12 teeth per cm² | |
| 12 mm (1/2″) |
12 mm (1/2″) |
300 mm (11-13/16″) |
445 mm (17-1/2″) |
10 teeth per cm² |
