Standard Features

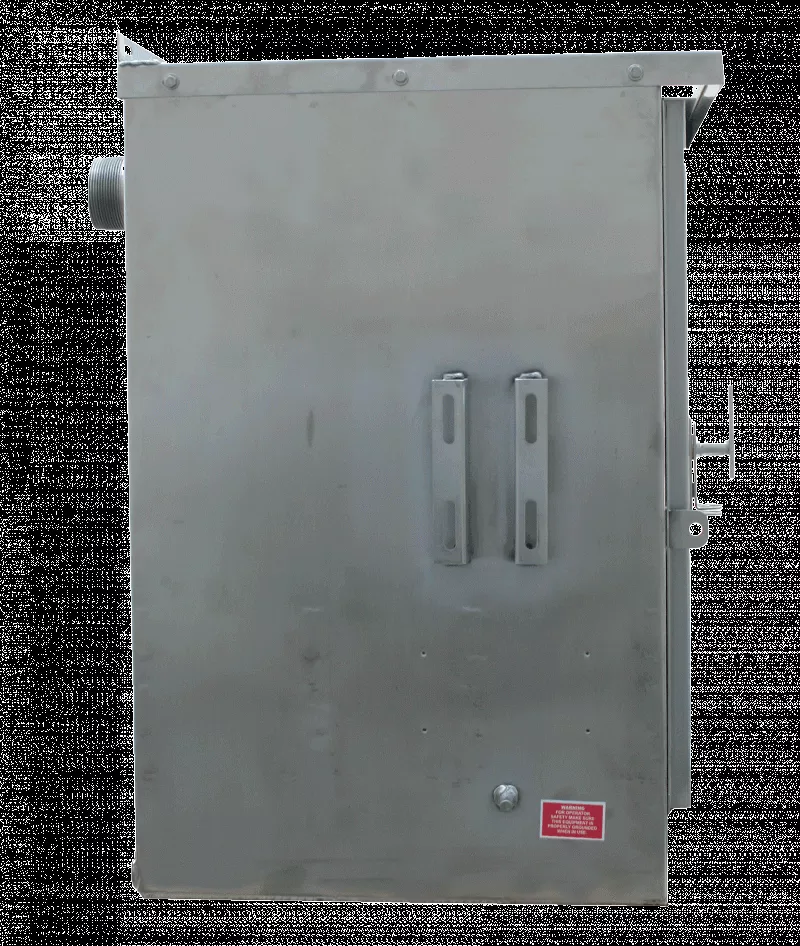

10-gallon (37.85 liter) capacity
3″ male NPT threaded back connection
Vented and weatherproof
Hinged door is lockable with a padlock
Bottom sloped (right to left) toward drain and pump mounting location
Vapor recovery mounting bracket integrated into the cabinet exterior
Mounting bracket with slotted openings integrated top and bottom flush with the back
Mating wall mount bracket supplied with fill box for easy installation
Available with hand pump assembly, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ or 3″ configuration
All connection assemblies are factory installed and tested prior to shipping
DEF, Aviation, and E-85 models all available
Vapor recover adaptor, cap and u-bolt kits are available
Post mount kits are available
Four-leg stand available in powder coated steel or stainless steel
Construction Details
- Box and door: Stainless steel
- Ball valve: Morrison 691 series brass or 691BSS series stainless steel
- Quick disconnect coupler and plug: Aluminum, anodized aluminum or stainless steel
- Quick disconnect adaptor and cap: Anodized aluminum
- Dry disconnect adaptor with cap: Aluminum, anodized aluminum or stainless steel
- Vapor recovery adaptor: Aluminum with FKM
- Vapor recovery cap: Aluminum, powder coated orange
- Hand pump: Steel construction, PTFE seals with FKM o-rings or stainless steel with PTFE and FKM
Box dimensions
Width = 24.26″
Height = 33.87″
Depth = 22.20″ (28.20″ including flange)
Code Compliance
UL 2583 listed; Florida DEP EQ-787
