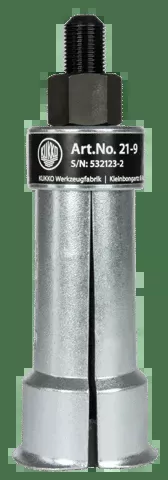

Kukko 21-9 Internal Bearing Extractor 2 3/4 – 3 7/8inch (70 – 100mm)
- For extracting inner bearings, bearing outer rings and bushings
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
- Mechanical pressure screw.
- MPN : 21-9
- Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Ball bearing ISO |
6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015; 6016; 6216; 6316; 16016; 61816; 6017; 6217; 6317; 6018; 6218; 6318; 16018; 61818; 6219; 6319; 6020; 6220; 6320; 16020; 61820 |
6014; 6214; 6314; 16014; 6015; 6215; 6315; 16015; 6016; 6216; 6316; 16016; 61816; 6017; 6217; 6317; 6018; 6218; 6318; 16018; 61818; 6219; 6319; 6020; 6220; 6320; 16020; 61820 |
|
Inner diameter of ball bearing |
70 – 100 mm | 2 3/4 – 3 7/8 inch |
|
Effective depth |
95 mm | 3 3/4 inch |
|
Length of internal extractor |
166 mm | 6 1/2 inch |
|
Number of segments |
2 | 2 |
|
Weight |
2.9 kg |
Product Data Sheet
