- ControlCut guide bar designed for low-vibration, smooth cutting with enhanced tip control
- Pitch: .325″ – Gauge: .063″ – Drive Links: 68 – Bar Length: 18″
- A great pick for users wanting precise cuts and dependable handling

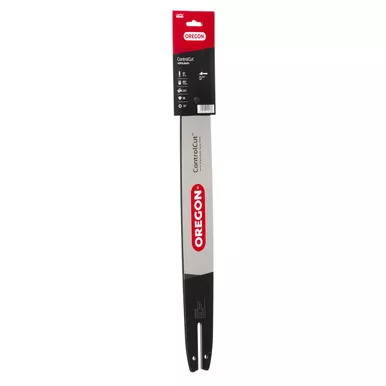

Oregon 183PXLBA074 ControlCut Guide Bar – 18″ Bar, .063″ Gauge, 68DL – Smooth Operation, Refined Cutting Precision
Crafted for operators who value control. The Oregon 183PXLBA074 helps the chain glide cleanly through the cut, offering a calmer, more controlled feel ideal for shaping and detailed limbing work.
Small Nose Radius for Refined Cutting Control
The compact tip helps the chain stay aligned, improving precision and reducing chatter in tight or technical applications.
Built to Hold Up to Frequent Use
Quality ControlCut bar steel and a robust 10-tooth nose sprocket provide reliable performance and long-running durability.
Details
| Product Type | Guide Bar |
| Product Family | ControlCut |
| Pitch | .325″ |
| Gauge | .063″ |
| Drive Links | 68 |
| Bar Length | 18″ |
| Tail Mount | A074 |
| Guide Bar Code | PXL |
| Guard Mate Compatible | No |
| Intenz | No |
| Narrow Kerf | No |
| Bar Nose Radius | Small |
| Sprocket Nose Tooth Count | 10 |
This Bar is Compatible With:
View full compatibility list
- Stihl:019, 020, 021, 023, 025, 025C, 10, 11, 70, 9, E180, MS 230, MS 230 C, MS 230 C-BE, MS 241 C-M, MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C, MS 251 C-BE
