High combustion chamber temperatures and compression force hot carbon particulates beneath the injector compressionseal, creating crater-like damage in the cylinder head seat. This leads to blow-by, reduced engine power, anddeclining fuel efficiency. Remove the injector and restore the seat fast—engineered for speed and precision onGM DMX L5P diesel engines.
- Fits GM DMX L5P diesel engines for injector seat and seal repair
- Restores injector cylinder head seat in just 15 seconds—no valve cover removal required
- Prevents leaks and performance loss with a clean, factory-spec sealing surface
- Optional combo kit includes PowerPull tool for fast, damage-free injector removal
- Ideal for busy repair shops looking to cut downtime and increase revenue
Patent Number: 12,460,606 B2
What Is the GM DMX L5P Fuel Injector Seat & Seal Restorer?

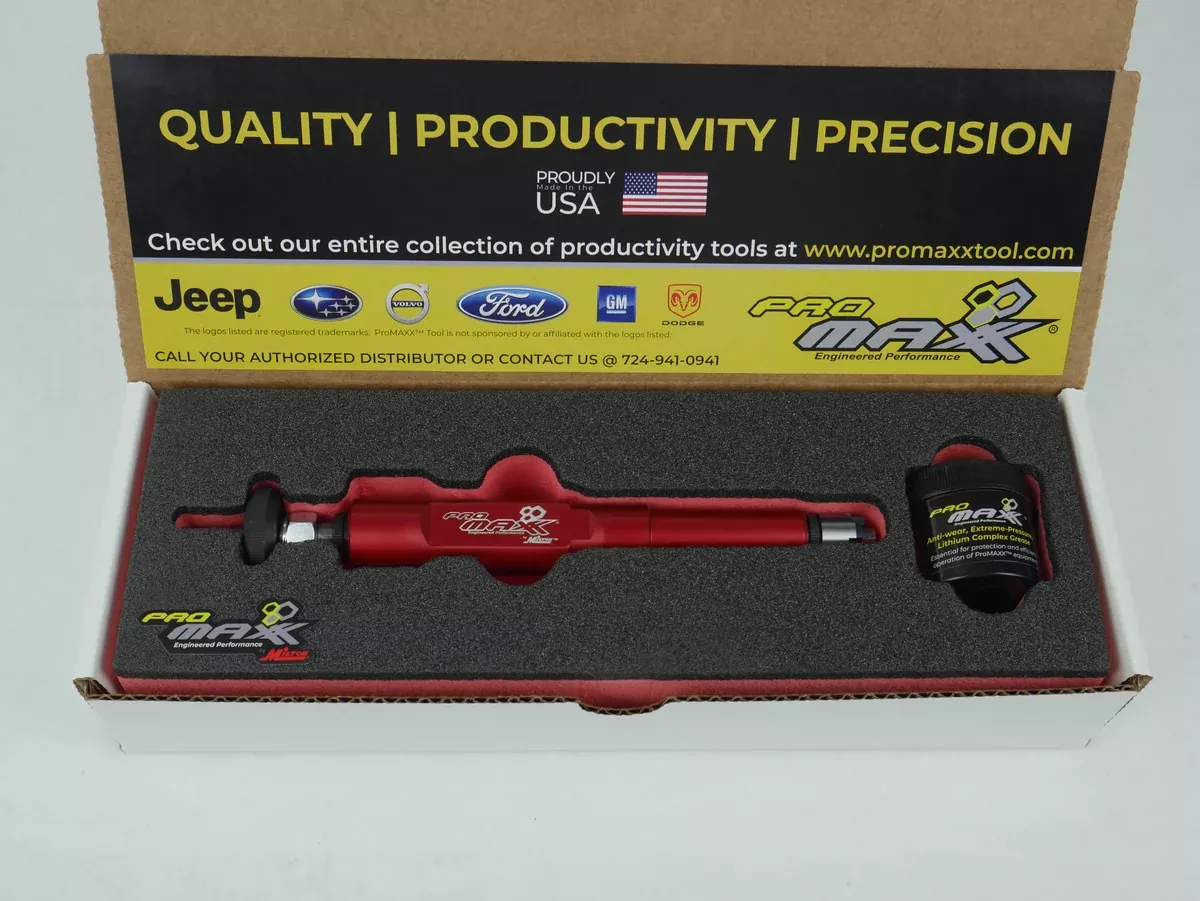

The ProMAXX Tool GM DMX L5P Fuel Injector and Seal Puller / Seat Restorer is a must-have solution for technicians handling GM DMX L5P injector replacement or seal-related issues. This precision-engineered tool restores damaged fuel injector seats by removing carbon buildup and resurfacing the aluminum seat to factory condition—ensuring proper injector fit and sealing during reinstall.
Key Features & Benefits of the GM DMX L5P Injector Seat Repair Tool
- Speeds Up GM L5P Injector Seal Replacement: Clean and refinish each injector seat in as little as 15 seconds, reducing downtime and eliminating repeat repairs caused by poor sealing.
- Restores Proper Injector Sealing: A resurfaced seat ensures correct injector compression seal contact, preventing blow-by, fuel leaks, and performance loss.
- No Valve Cover Removal Required: Perform injector seat repair directly through the injector bore, saving significant labor time.
- Fast ROI for Professional Shops: The tool typically pays for itself after just three injector repairs, excluding injector R&R labor.
- Designed to Pair with Injector Removal Tools: Ideal when used alongside PowerPull injector removal systems for complete GM L5P injector service.
- Essential for High-Volume GM Diesel Repair: Eliminates guesswork and restores seats correctly the first time.
Common GM DMX L5P Injector Seat & Seal Repair Questions:
-
Why do GM L5P injectors fail to seal properly?
Carbon buildup from high-temperature combustion gases (often exceeding 1100°F) erodes the aluminum injector seat, preventing the compression seal from seating correctly.
-
Can this tool be used during GM L5P injector replacement?
Yes. It restores the sealing surface before injector installation, ensuring proper seal compression and preventing repeat failures.
-
Does this replace wire brushes or seat cleaners?
Yes. Unlike brass brushes, which are softer than aluminum, this tool resurfaces the injector seat to a clean, flat, factory-spec finish.
-
Where is the injector seat located on the GM L5P?
The injector seat is machined directly into the aluminum cylinder head, beneath the injector bore.
What Causes GM DMX L5P Injector Seat Damage?
- GM DMX L5P injector seats are damaged when hot carbon particulates migrate beneath the injector compression seal, pitting the aluminum seat and causing blow-by, injector noise, and power loss.
What Makes This Better Than Traditional Cleaning Methods?
- Traditional brass wire brushes cannot properly repair aluminum injector seats. This tool resurfaces the seat, restoring proper geometry and sealing integrity instead of just removing loose debris.
BEST VALUE – Air Hammer Assisted Injector Puller Included in Combo Kit (PMXRBY320PRO / PMXRBY320PROP)
Maximize efficiency and revenue with the GM DMX L5P Service Combo—combining the PowerPull Injector Puller and Injector Seat Restorer for complete injector service.
- Removes stuck GM L5P injectors quickly without cylinder head removal
- Includes air hammer-assisted punch for faster injector extraction
- Dual-function system combines pulling and resurfacing operations
- Repairs injector seats to restore proper sealing and engine performance
- Ideal for fleet service and high-volume GM diesel repair shops
- Reduces labor time while increasing shop profitability
Call a ProMAXX Tool Specialist at 724-941-0941 if You Still Have Questions Like…
-
What is the best GM DMX L5P injector seat repair tool?
-
How do you fix injector blow-by on a GM L5P?
-
Can GM L5P injector seats be resurfaced?
-
How do you remove carbon from GM L5P injector seats?
-
What causes injector seal failure on GM L5P engines?
RepairsDuramax L5P Fuel Injector Seat in 15 seconds!
Robby User Guide Info
Thank you for investing in the ProMAXX® Tool GMDuramax L5P Fuel Injector Seat Restorer. This device was engineered to refinish the seat to factory new. A scored injector seat is caused by the build-up of red-hot carbon, from combustion, that burns and then cools as it settles on the fuel injector seat over time. Refinishing it is essential to restore and maintain peak engine performance.
- Remove fuel line(s) and fuel injector(s). We highly recommend using our ProMAXX® PowerPull Fuel Injector Puller PMXPWP100PRO for fast and effective removal.
- There is no need to remove the valve cover as the Fuel Injector Seat Restorer was designed so that the valve cover can remain on and still function effectively.
- The valve cover has been removed to improve clarity in the photo to the right.
- Remove the rubber injector seal from the valve cover and retain.
- Place a small amount of the included high-pressure lithium grease (PMXPPG001) on the preceding edge of each blade on the cutter.
- Place the GM Duramax L5P Fuel Injector Seat Restorer into the fuel injector cavity until it stops.
- Robby is set from the factory to remove just .003” of cut, sufficient to remove any carbon build up on the seat. It may be adjusted on site to remove more.
- Attach to an electric/air powered drill (right angle preferred) or use the optional knurled hand knob to power the Fuel Injector Seat Restorer.
- Turn your drill on first to operating RPM and then depress Robby making contact for 5 seconds and release.
- Repeat for all other fuel injector seats that need to be restored.
NOTE:
To remove more material, place a reference line on the lock nut and mating shaft to gauge adjustment. Turning the nut in a 1/8 increment counterclockwise will remove an additional .005” of material. It is not recommended, nor we believe necessary, to remove any additional material than in the tool’s stock form of .003”. Instances may exist where more damage has occurred, or previous attempts to clean the seat were done. If an adjustment is made, turn the lock nut clockwise to return Robby and cutter to the original factory position.
ProMAXX Tool proudly provides limited lifetime warranties and free unlimited technical support. For more information, replacement parts, or to submit comments or questions visit www.promaxxtool.com. For technical support contact (724) 941-0941.
ProMAXX® warrants this product to the original purchaser for its useful life against deficiencies in material and workmanship. This LIMITED LIFETIME WARRANTY does not cover normal wear and tear, and if it is used incorrectly, abused, altered, or repaired. Deficient products will be replaced or repaired.
Always use OSHA approved safety glasses and protective gloves while using this device and performing this operation.
