AvailableOptions
· Custom lengths available upon request
Construction

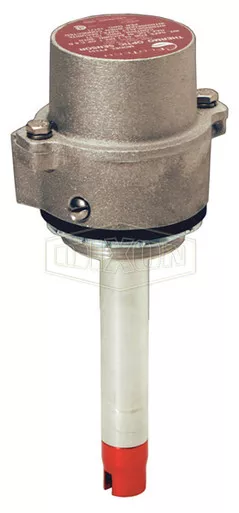

· The FT151P series sensor housing containsPlug-n-Play probe in a cast aluminum housing. The sensor housing has a 2″NPT mounting thread, heavy duty stainless steel hardware, and FKM probe seal.
· All screws and rings are heavy duty stainlesssteel for easy assembly and long life.
Description
· Housing, Probe & Harness Connector
Features
· Housing with 7″ Plug-n-Play overfilldetection probe, with Plug-n-Play harness connector
· Overfill detection sensors are intended todetect a pending overfill condition inside the fuel tank compartment. When theyare wetted (come in contact with the fuel) they signal the fuel loading rack toclose the fuel supply control valve, to prevent a spill of product.
· Prewired and factory tested with Plug-n-Playcabling and plugs, eliminates hours of manual crimped wire connections, andremoves the problems and worries associated with connection problems.
· Trouble Free Probes: FloTech brand probesincorporate a double elastomer design which seals and secures the sensitiveglass optic prism tip. The elastomer seals are flexible allowing thermalexpansion and resistance to steam cleaning and petroleum chemical attack.
Installation
· Easy to install, just mount the housing into thetank and plug the cables together.
· Install into either a 2″ NPT threaded portor a 2-3/8″ diameter tank opening using the gasket and locking nutprovided.
Includes
· 7″ probe
Note
All FloTech™ electronics manufactured after January 1, 2015are covered by our 5 year warranty.
WARNING: This product contains lead, a chemical known to theState of California to cause cancer and birth defects or other reproductiveharm.
