Description

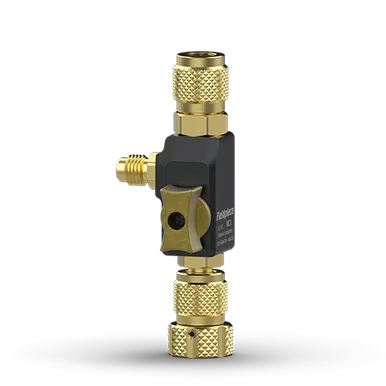

Fieldpiece VC1 – 1/4″ Valve Core Removal Tool
Take Control with Faster Flow
Vacuum-rated to 20 microns, the Fieldpiece Valve Core Removal Tools (VCRTs) are essential tools in every HVACR technician’s tool kit. Removing a valve core helps speed up charging & recovery operations. The capture rod reliably engages the valve core, the first time, every time – no more fishing around for lost valve cores.
Key Features and Benefits
- Swap 1/4″ standard service port fitting with optional 5/16” fitting for mini-splits
- Lock in the valve core in one try – a gasket secures the valve core pin
- Keep the valve core on hand during service with the magnetic cap
- Vacuum-rated to 20 microns
- Rated for high pressure refrigerants including R410a
- Spare O-rings/Gaskets are available, replace the gaskets at your convenience and ensure the highest efficiency
- A2L Compatible
Specs
| Service Port Size | 1/4″ Female (optional 5/16″ swappable fitting available) |
| Side Port Size | 1/4″ Male with removable valve core |
| Vacuum Rating | 20 microns / 0.027 millibar / 0.020 Torr |
| Maximum Working Pressure | 800 psi / 55 Bar |
| Dimensions | 4.25″ x 1.56″ x 1.5″ |
| Weight | 0.6 lbs / 272 g |
