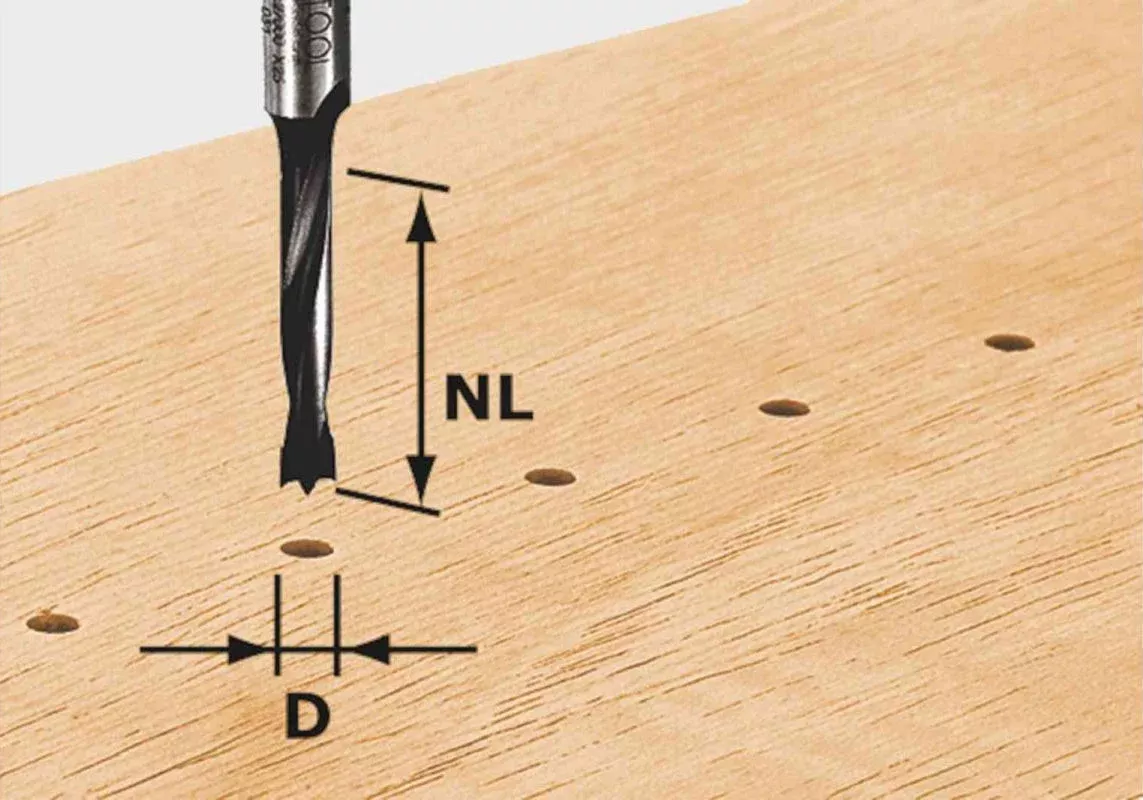

Bit for drilling hole series with a router, especially using the Festool LR 32 Hole Drilling System.
Please note: These bits all have 8mm shanks.
| Cutting Diameter |
Cutting Length |
Shank | Overall Length |
Tip | HW | Festool |
|---|---|---|---|---|---|---|
| 3mm (~1/8″) |
16mm (~5/8″) |
8mm | 55mm (~2-3/16″) |
Std Drill | 721520 | 491065 HW D3/16 |
| 5mm (~7/32″) |
30mm (~1-3/16″) |
8mm | 53.5mm (~2-1/8″) |
Brad Point | 721521 | 491066 HW S8 D5/30 Z |
| 5mm (~7/32″) |
30mm (~1-3/16″) |
8mm | 53.5mm (~2-1/8″) |
Spear Point | 721852 | 491064 HW S8 D5/30 |
| 6mm (~1/4″) |
30mm (~1-3/16″) |
8mm | 53.5mm (~2-1/8″) |
Brad Point | 721522 | 491067 HW S8 D6/30 Z |
| 8mm (~1/4″) |
30mm (~1-3/16″) |
8mm | 53.5mm (~2-1/8″) |
Brad Point | 721523 | 491068 HW S8 D8/30 Z |
