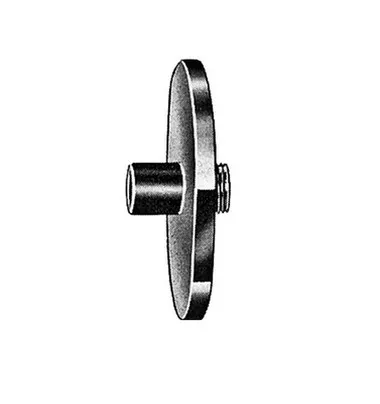

Dotco 14-2538 Router Guide For Router Bits with 3/8″ Shank Bits

Built for controlled routing work with compatible Dotco pneumatic routers, the Dotco 14-2538 Router Guide supports router bits with 3/8″ shanks and provides a guided reference point for cleaner, more consistent cuts. This accessory is used when the router bit must follow a controlled path during trimming, profiling, or template-guided routing operations.

The 14-2538 guide features Dimension A: 1-1/2″, Dimension B: 1/2″, Dimension C: 1/2″, and Dimension D: 1/8″, giving buyers a clear dimensional match point when replacing an existing guide or selecting the correct guide for a specific routing setup.

Type: Router Guide | Model: 14-2538 | Compatible Bit Shank: 3/8″ | Dimension A: 1-1/2″ | Dimension B: 1/2″ | Dimension C: 1/2″ | Dimension D: 1/8″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and routing operations.
• Aerospace and fabrication shop router setups.
• Template-guided routing with compatible Dotco routers.
• Replacement guide selection for existing 3/8″ shank router bit applications.

FAQs:

• Q: Is the Dotco 14-2538 a router or an accessory?A: It is a router guide accessory, not a complete router.
• Q: What router bit shank size does this guide support?A: This guide is for router bits with 3/8″ shanks.
• Q: What dimensions should I verify before ordering?A: Confirm Dimension A: 1-1/2″, Dimension B: 1/2″, Dimension C: 1/2″, and Dimension D: 1/8″ against your required setup.
