Description

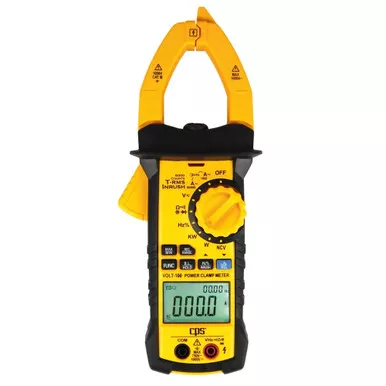

CPS VOLT-100 Wireless Clamp Power Meter with InRush, True RMS
Easily measure inrush/AC currents, resistance, RMS, and more
The CPS VOLT-100 is a portable, professional multifunction instrument with an LCD display for obtaining electrical measurements. It can be used as a conventional clamp meter or may be paired to Apple & Android smartphones & tablets via Bluetooth for additional functionality.
Key Features & Benefits
- Use with or without the CPS Link app
- Connects to Apple and Android smartphones & tablets via Bluetooth
- Power factoring to determine true power consumption
- Data logging of electrical readings
- Utility data feed calculates actual cost/hour of appliances
- CAT III 1,000 V rating
- True RMS measurements
- Non-contact voltage tester
- Maximum Voltage: 750 V AC; 1000 V DC
- Auto range and manual measuring
- Measuring range overload protection
- Display auto-off
- Display backlight
- Automatic polarity indication
- Max/Min and relative measuring function
Measures
- Inrush current
- AC current
- Resistance
- AC/DC voltage
- Phase angle
- Harmonics
- Frequency
- Capacitance
- Duty cycle
- Diode connection
Note on Blower Motor Testing (CPS VOLT-100)
The CPS VOLT-100 clamp meter is well-suited for blower motor testing, enabling fast, non-contact current checks on supply leads at the air handler or furnace. Use it during start-up and service visits to confirm blower performance and to support watt-draw evaluations as part of HVAC system grading.
Blower fan watt-draw testing is specifically referenced in Section 7 of the ANSI/RESNET/ACCA Standard 310: Standard for Grading the Installation of HVAC Systems – Evaluation of the Blower Fan Watt Draw. Review the full standard here:ANSI/RESNET/ACCA 310-2020 Standard (PDF) .
Suggested SEO terms: blower motor testing, blower fan watt draw, HVAC clamp meter, CPS VOLT-100.
