Features:
- Tiger Lights FNHKIT-2 Light Kit
- Driving, flood, or spot beam pattern
- 45,400 effective lumens
- 524 watts
- 43.34 amp draw
- Input voltage: 12-Volt to 24-Volt
- Plug and play wiring for easy install

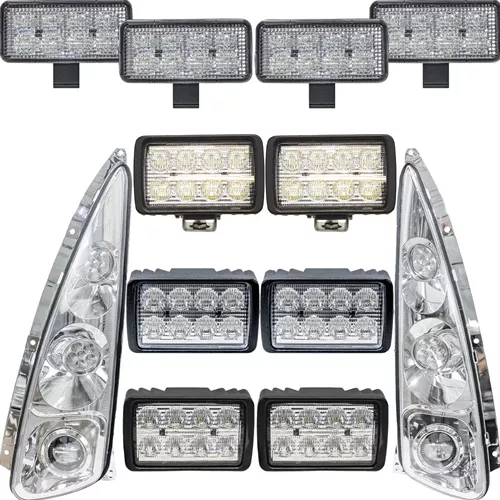

- Includes 12 lights (1 complete left-hand hood, 1 complete right-hand hood, 4 front upper cab, 2 rear upper cab, 2 rear fender, and 2 windshield lights), connectors, adapters, and hardware
Left-Hand Complete Hood Light Features (PN: 2591 – TL8030L Light):
- 1 LED light is 9.1″ x 27.28″ x 5.71″ (W x H x D)
- Driving/flood beam pattern
- 5,900 effective lumens
- 12 LEDs
- 62 watts
- 5.16 amp draw
- Use original mount and connectors
- Replaces entire headlight with two flood and one hi/lo driving lights built-in
Right-Hand Complete Hood Light Features (PN: 2592 – TL8030R Light):
- 1 LED light is 9.1″ x 27.28″ x 5.71″ (W x H x D)
- Driving/flood beam pattern
- 5,900 effective lumens
- 12 LEDs
- 62 watts
- 5.16 amp draw
- Use original mount and connectors
- Replaces entire headlight with two flood and one hi/lo driving lights built-in
Upper Cab Light Features (PN: 2643 – TL7040 Light):
- 4 LED lights are 6″ x 3″ x 2.5″ (W x H x D)
- Flood/spot beam pattern
- 3,000 effective lumens
- 8 LEDs
- 40 watts
- 3.33 amp draw
- Use original mount and wiring
- Bolts into original tractor mount
Rear Upper Cab Light Features (PN: 3106 – TL3030 Light):
- 2 LED lights are 6″ x 3.5″ x 3″ (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.33 amp draw
- Bottom mount
Rear Fender Light Features (PN: 2775 – TL3085 Light):
- 2 LED lights are 6″ x 3.5″ x 3″ (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.33 amp draw
- Comes with a hollow bolt to easily run the wire to hide under the fender
Windshield Light Features (PN: 2762 – TL3075 Light):
- 2 LED lights are 6″ x 3.5″ x 3″ (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.3 amp draw
- Side mount bracket
- Installation may require wire splicing into original wiring
Replaces all hood, upper cab, fender, and windshield lights (1 complete left-hand hood, 1 complete right-hand hood, 4 front upper cab, 2 rear upper cab, 2 rear fender, and 2 windshield lights).Manufacturer’s Limited Lifetime Warranty
