FEATURES:
- Enhanced lip design in the 12-o’clock position centers couple with API adaptor for solid connection. Easier to handle and operate
- Hose connection end angled at 15° downward for improved drainage
- Available in female coupler & male adaptor configurations
- Mates with standard 4″ API RP-1004 tank truck adaptors
- Standard with KAMLOK™ Twin-Kam arms which maintain a more secure seal than standard couplings
- Standard aluminum body with Buna-N seals. Also available with viton seals
PART NUMBERS AND DRAWINGS:
|
871A-AL40 |
Gravity Coupler w/ 4″ Male Kam & Groove Outlet (Buna-N) |
|
871A-AL4030 |
Gravity Coupler w/ 3″ Male Kam & Groove Outlet (Buna-N) |
|
871B-AL40 |
Gravity Coupler w/ 4″ Female Kam & Groove Outlet (Buna-N) |
|
871ED-AL40 |
Openable Gravity Coupler w/ 4″ Female NPT Outlet (Buna-N) |
REPAIR PARTS:
|
871-ARM KIT |
Cam Arm Repair Kit |
|
H08347M |

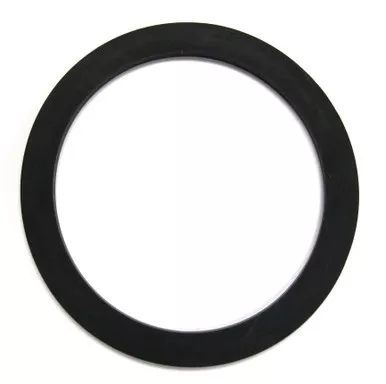

6″ Buna-N Gasket |
|
H20462M |
6″ Viton Gasket |
|
H20547M |
4″ Buna-N Gasket |
|
H00976M |
4″ Fluorocarbon Gasket |
|
H08328M |
Connector Ring |
|
H20550M |
Finger Ring |
|
H20325M |
18-3/8″ Chain |
|
6991 |
27-1/2″ Chain |
|
634B-AL30 |
3″ Alum. Kamlok Dust Cap, Buna-N Gasket |
|
634B-AL40 |
4″ Alum. Kamlok Dust Cap, Buna-N Gasket |
