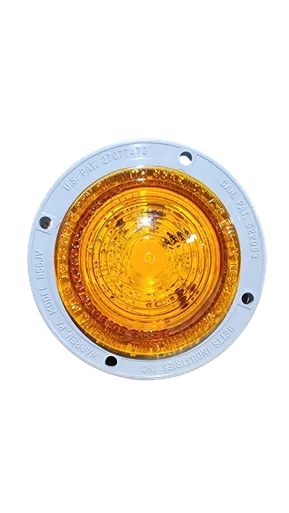

The 56 Series Assemblies include a Lite Ranger™ LED Lamp insert mated to a 56 Series housing. The housing is made from reinforced PBT engineered thermoplastic for high strength and impact resistance and offers unsurpassed protection to the lamp assembly.The exclusive Snap Seal™ O-ring locks out moisture and corrosion while providing convenient access to the inside of the housing.The spacious 56 Series housing, which also functions as a junction box for the wiring and plug connections, requires a 3” diameter mounting hole with four flange screws.
FEATURES:
- Designed to meet FMVSS 108 requirements (49CFR§571.108)
- SAE DOT Lighting Codes: P2PC
- Supports System Voltages of 12Vdc and 24Vdc
- Reverse Polarity Protected
- Requires a ø3 inch mounting hole with four flange screws or rivets
SPECIFICATIONS:
| BRAND: | Betts |
| FUNCTION: | Marker/Clearance |
| COLOR: | Amber |
| LENS: | Amber shallow lens with optics |
| HOUSING COLOR: | Gray |
| POWER MARKER: | .358W |
| CURRENT MARKER (12V): | 29.9mA |
| CURRENT MARKER (24V): | 14.9 mA |
| WEIGHT: | .4 lbs. |
