The Genesis line of gas springs has been created to cover the industry’s wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations.
FEATURES:

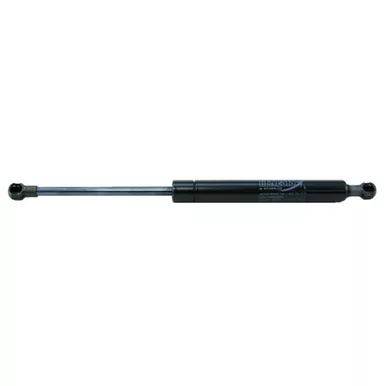

- Genesis Gas Spring
- .315″ Rod x .748″ Tube (8mm x 19mm)
- 7.75″ Stroke
- 10mm Metal Ends
- 153 lbs. Force
- 19.685″ Extended Length
SPECIFICATIONS:
| BRAND: | Genesis |
| CONNECTOR MATERIAL: | Metal |
| CONNECTOR SIZE: | 10mm |
| FORCE LBF: | 153 |
| STROKE: | 7.75 |
| EXTENDED LENGTH: | 19.685″ |
| WEIGHT: | .7 lbs. |
