Description

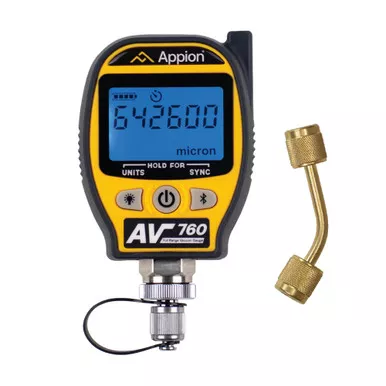

Appion AV760 Wireless Vacuum Gauge
Accurate Measurement from Atmosphere to 1 micron
Accurately measure the entire evacuation process from atmosphere to 1 micron and immediately detect large leaks with the Appion AV760 Wireless Full-Range Vacuum Gauge. The AV760 delivers 10-point Vacuum-Verified accuracy, elite technology, and advanced app functionality for remote, real-time readings, enabling advanced analysis and diagnosis. Reliable. Repeatable. Durable.
Key Features & Benefits
- High-Resolution Full-Range Response – Atmospheric to 15k microns are displayed in 50-micronincrements, and 15k to 1 micron are displayed within an ultra-fine 1 micron resolution.
- Oil protection – A filter screen and oil catch keep the sensors clean and help maintainaccurate measurements.
- Durable – A rubberized water-resistant IP65 rated housing protects the gauge from the hazardsof the jobsite.
Specs
| AV760 Gauge Specs | |
|---|---|
| Range | 760,000 to 1 microns |
| Accuracy | ±5% of reading + 10 microns (1 to 5k), ±5% of reading (5k to ATM) |
| Calibration Points | 10-point Vacuum-Verified |
| Resolution | 1 micron (1-14999), 50 micron (15000-ATM) |
| Maximum Overpressure | 400 psi |
| Fitting | 1/4in Male SAE Flare |
| Units | Microns, mTorr, kPa, mBar, in/Hg, psia |
| Included Adapter | (1) 4″ 45° 1/4in Female FL to 1/4in Female FL Connector |
| IP Rating | IP65 |
| Bluetooth Range | 300 ft |
