Accessory Kit for Leigh D4R Pro Jig

Original price was: $287.20.Current price is: $178.63.

Sale!
SKU: 105706 Category:

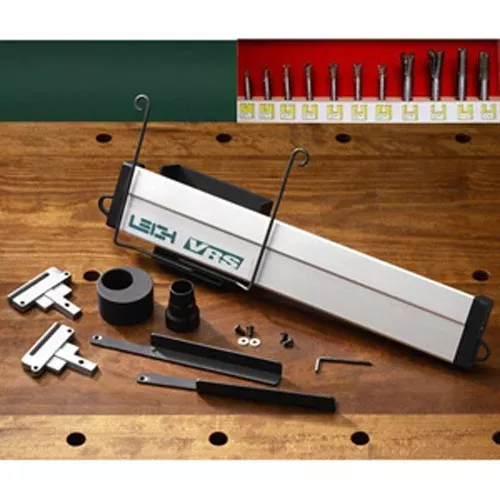

Leigh’s VRS Vacuum & Router Support for the Leigh Dovetails Jigs puts dust collectiononto the jig, freeing your router from bulky hose connections. Along with dust collection, theVRS provides additional router support across the full width of the jig. Its thoughtful designmoves up and down with the templates, so there’s no repositioning as stock thickness changes.A collector chute slides effortlessly under the support for super-efficient dust removal directlyat the source. Two controller arms straddle the base of any router, moving the collector chute asyou slide your router. Each VRS comes complete with two adapters to fit all popular vacuum hosesizes from 1″ to 2-1/2″. Because the VRS is held in place by powerful rare earth magnets, itstays put during use, but comes off without tools (and even has a built-in hanger) when youwant to flip or change templates. Made from aluminum and tough ABS plastic.

The 12-piece Highland bit set complements the basic D4R bit selection. With it and standardbits, you can make every dovetail joint possible with the D4R Pro. It is the equivalent ofLeigh’s 2411-8 bit set and includes:

Leigh Equivalent Size Angle Shank
50-8 1/4″ 8° 8mm
60-8 5/16″ 8° 8mm
70-8 3/8″ 8° 8mm
75-8 7/16″ 8° 8mm
101-8 1/2″ 10° 8mm
112-8 1/2″ 12° 8mm
128-8 1/2″ 18° 8mm
90 11/16″ 8° 1/2″
100 13/16″ 8° 1/2″
150 7/16″ Straight 1/2″
160 1/2″ Straight 1/2″
172-8 8mm Collet Adapter 1/2″
