Includes T-Adapter for Connecting Smoke Machines to Help Locate Air Leaks in the Components.

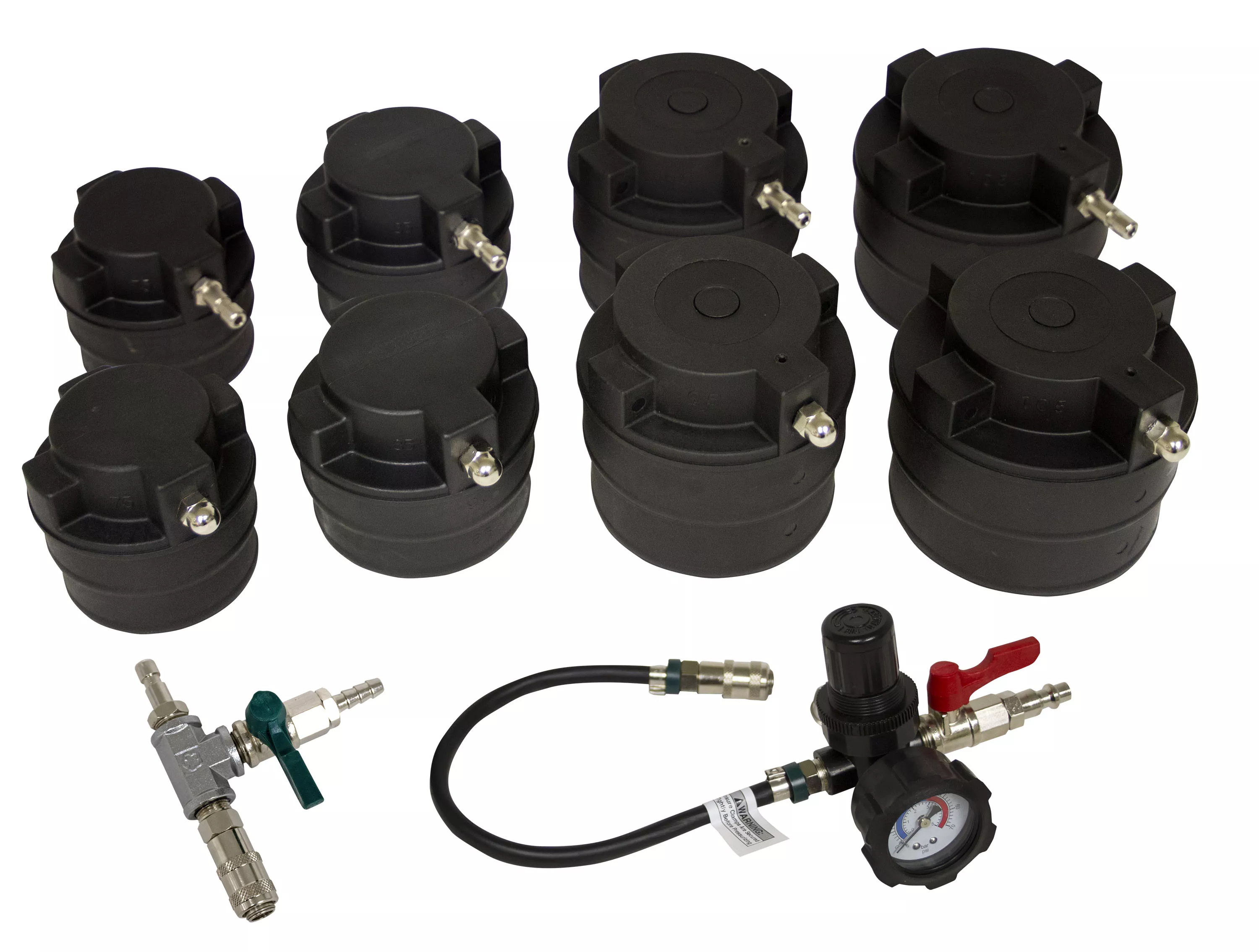

Plugs the output side of the turbo and the intake inlet. Air and smoke are applied through one adapter to show the presence of leaks within the system. Features a pressure gauge, shut off valve and pressure regulator and includes four pairs of stepped adapters to fit most turbo systems on light duty trucks and Class 7 & 8 Semis. Can also be used on some cooling system hoses. Comes in a blow molded plastic case for storage.
| Part | Description | Sizing |
|---|---|---|
| 69790 | 75/80mm Plugged Adapter | 3″-3-1/8″ |
| 69800 | 75/80 Air Fitting Adapter | 3″-3-1/8″ |
| 69810 | 85/90mm Plugged Adapter | 3-3/8″-3-1/2″ |
| 69820 | 85/90mm Air Fitting Adapter | 3-3/8″-3-1/2″ |
| 69850 | 95/100mm Plugged Adapter | 3-3/4″-4″ |
| 69860 | 95/100mm Air Fitting Adapter | 3-3/4″-4″ |
| 69870 | 105/110mm Plugged Adapter | 4-1/8″-4-1/4″ |
| 69880 | 105/110mm Air Fitting Adapter | 4-1/8″-4-1/4″ |
| 69840 | Air Regulator Hose & Gauge | |
| 69920 | Smoke Adapter | |
| 69890 | Case for 69930 |
