Installs Harmonic Balancers or Drive Pulleys that are Pressed on the Crankshaft.

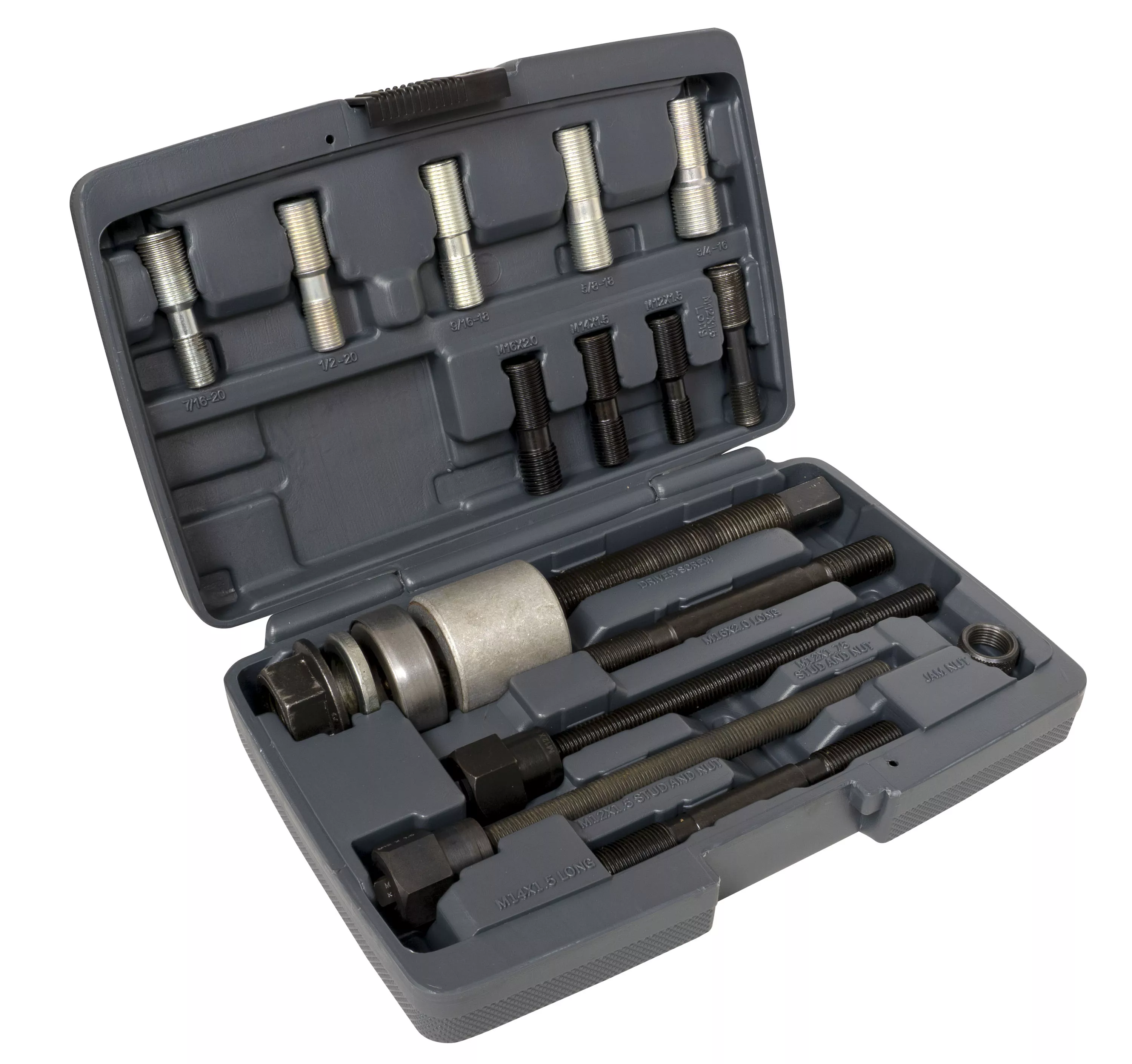

Set includes driving screw, thrust bearing and 13 threaded adapters necessary to work on a wide range of domestic and some import harmonic balancers. Five long adapters for
use on Dodge Hemi, generation III and IV GM motors, some Chrysler and some Ford including 3.5L and 4.0L. The 1.75″ spacer allows the tool to work more effectively on deep
harmonic balancers.
SUPERSEDES 53760 Harmonic Balancer Installer Kit, 12 Adapters
Available Individually:
| Part | Description | |
|---|---|---|
| 1 | 52210 | Flanged Nut |
| 2 | 52220 | Thrust Bearing |
| 3 | 52230 | Driver |
| 4 | 52240 | Knurled Nut |
| 5 | 52250 | Spacer |
| 6 | 52270 | 7/16-20 Adapter |
| 7 | 52290 | M12x1.5 Adapter, Short |
| 8 | 52300 | 1/2-20 Adapter |
| 9 | 52320 | M14x1.5 Adapter |
| 10 | 52330 | 9/16-18 Adapter |
| 11 | 52340 | 5/8-18 Adapter |
| 12 | 52350 | M16x2.0 Adapter |
| 13 | 52360 | 3/4-16 Adapter |
| 14 | 53470 | Spacer |
| 15 | 53480 | M14x1.5 Adapter, Long |
| 16 | 53490 | M16x2.0 Adapter, Long |
| 17 | 53740 | Case for 53790 |
| 18 | 53770 | M12x1.5 Adapter, Medium |
| 19 | 53820 | Long 12mmx1.5 Threaded Shaft |
| 20 | 66720 | M12x1.75 Nut |
| 21 | 53830 | M12x1.5 Nut |
| 22 | 66860 | M12x1.75 Stud |
| 58960 | Spacer |
