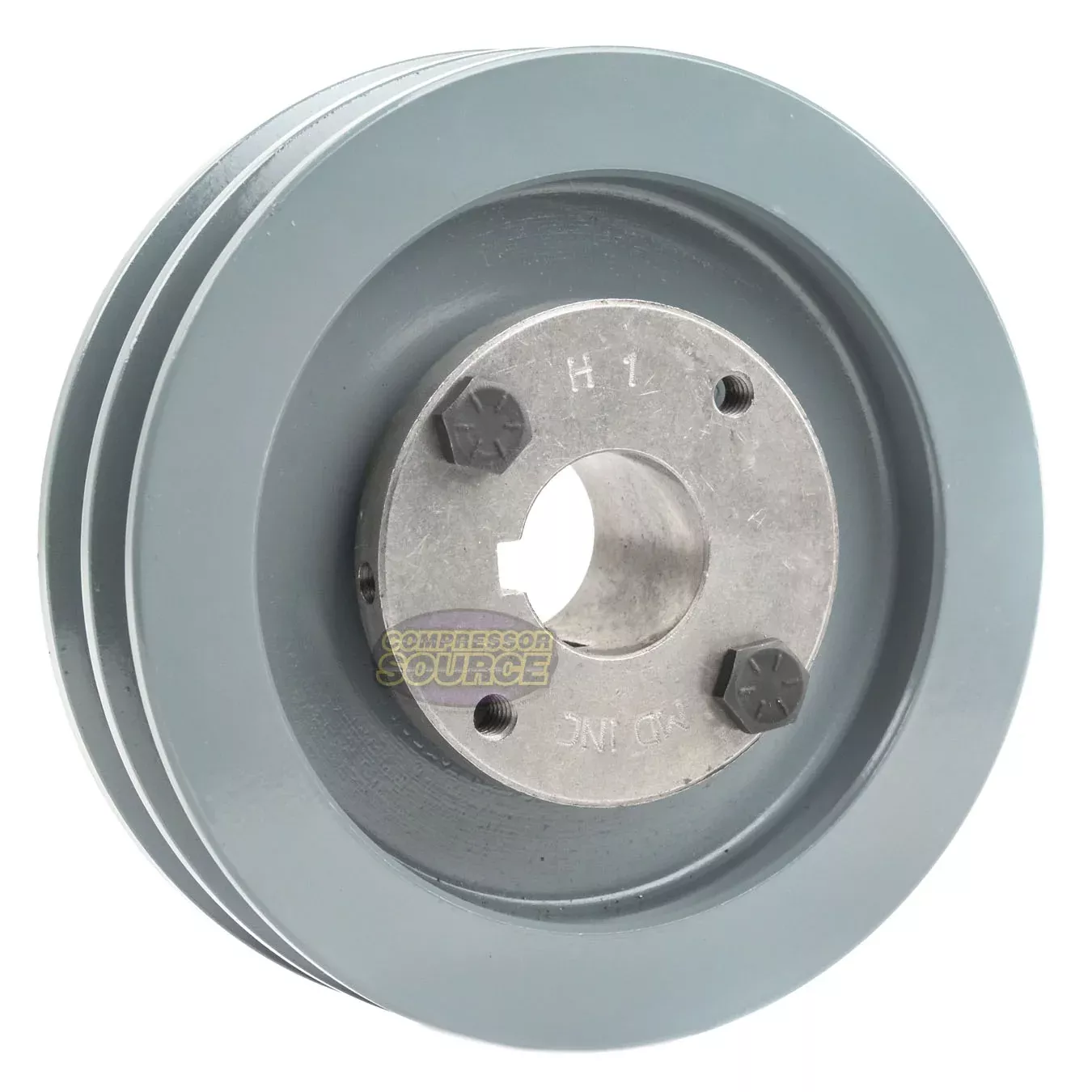

Cast Iron 5 ” Dual Groove 2 Belt A Section 4L Pulley with 1 ” Sheave Bushing
Masterdrive dual groove 5″ cast iron pulley/sheave with 1″ H bushing for A section belt is a high-quality 2-piece pulley that measures 5″ outside diameter and is designed to be used with an H style bushing. This bushing inserts into the center of the pulley and slides over the shaft, as you tighten down the bolts on the H bushing it will tighten down on the shaft. This style of pulley is much more secure than a standard single-piece pulley. The bushing is made of solid steel and precision machined to ensure high quality and secure attachment to your motor/engine shaft. This pulley accepts A Section also known as 4L series belts and is 5/8″ wide.
Specifications:
• Solid Steel Bushing
• Dual Groove Pulley
• For Use on 1″ Shaft
• 1″ Bushing Included
• Outside Diameter of Pulley: 5″
• High-Quality Cast Iron Construction
• Accepts: A Section / 4L Section Belts
