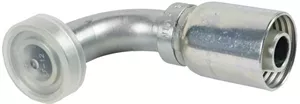

When you’re building custom hydraulic lines or repairing hose assemblies in tight spaces, this 90-degree crimp fitting saves the day. Instead of wrestling with multiple fittings and adapters to make a right-angle connection, this elbow does it all in one piece. It’s designed for hydraulic systems on tractors, loaders, balers, and other farm equipment where space is tight and you need to make connections at angles.
What You’re Getting
- Heavy-duty 90-degree elbow design eliminates the need for multiple fittings and reduces potential leak points
- Built tough to handle high pressure and constant vibration with O-ring seals that resist hydraulic fluid
- Code 61 flange head provides secure, standardized connection for professional hydraulic applications
- Rigid construction maintains consistent flow angles even under pressure
- Professional-grade crimp connection ensures leak-free operation when properly installed
Built for Real Farm Work
This fitting works with 3/4-inch hydraulic hose and connects to Code 61 flange systems found on many agricultural applications. Whether you’re plumbing remote hydraulics, fixing a cylinder line, or building custom hydraulic circuits, this elbow fitting gets the job done right. You’ll find these connections on everything from tractor loaders and implement hydraulics to custom-built farm equipment.
Made to Last
Farm hydraulics operate under high pressure and face constant vibration, so this fitting is built tough with seals that handle the pressure while resisting hydraulic fluid. The rigid design maintains its shape and seal integrity even after years of use in dusty, dirty farm conditions.
Installation Notes
This is a crimp fitting, so you’ll need the right crimping tool and die set for a proper installation. Make sure the hose is cut square and clean before assembly. The 90-degree angle is fixed, so plan your routing accordingly when positioning the fitting on your hose assembly.
